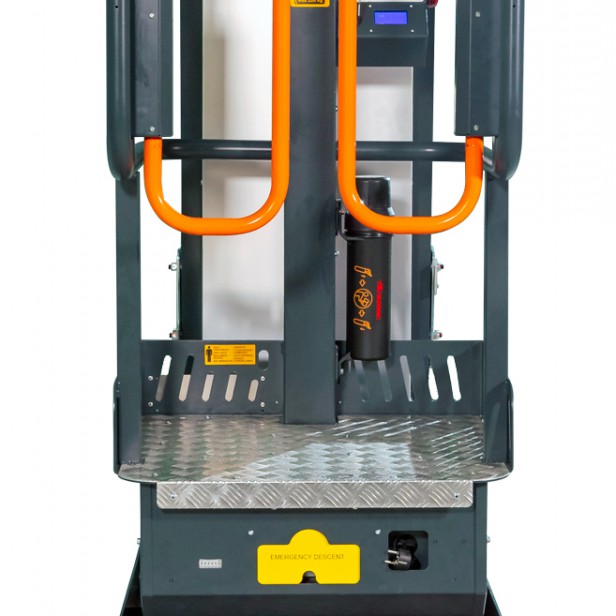

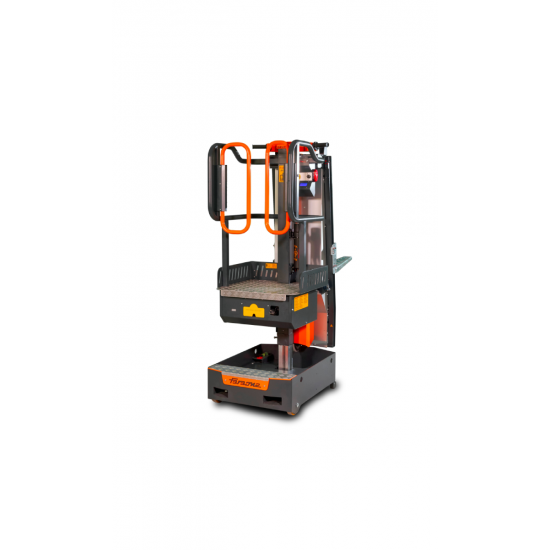

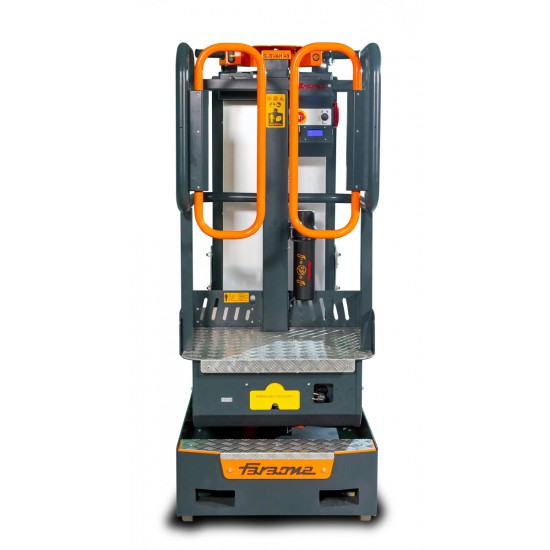

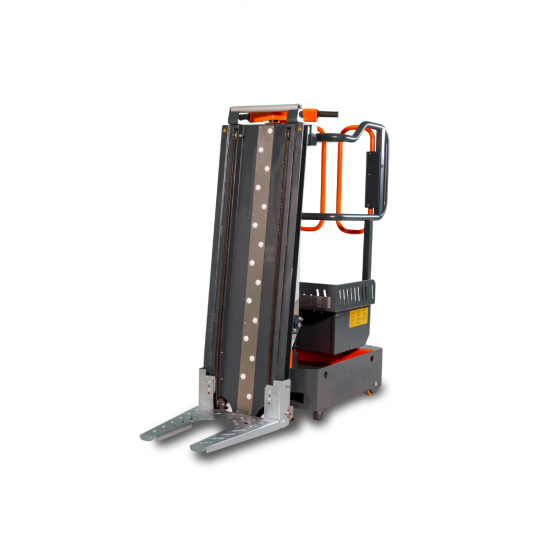

ORDER PICKER FOR TIRE SECTOR ELEVAH 40 TIRES - 4M WORKING HEIGHT

Max. working height4,00 m

Max capacity200 kg

Number of people1

UseInternal - External

AClosed machine height1750 mm

BMinimum platform height290 mm

CMaximum platform height1950 mm

DBase overall dimensions1780 mm

E715 mm

GCage dimensions685 mm

H580 mm

Machine weight475 kg

Driving wheels sizeØ 186 x 60 mm

Idle rear wheels sizeØ 150 x 40 mm

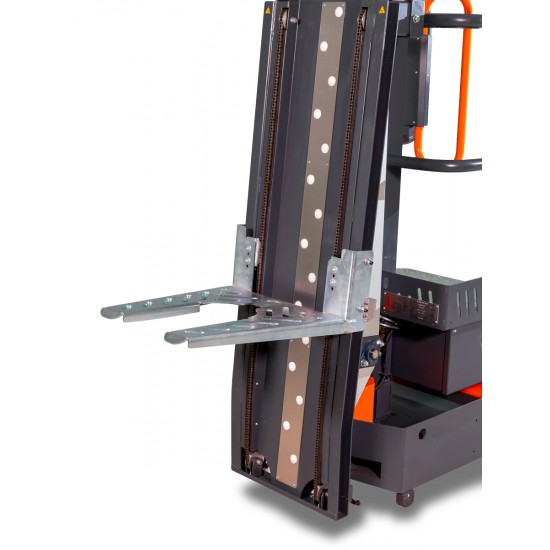

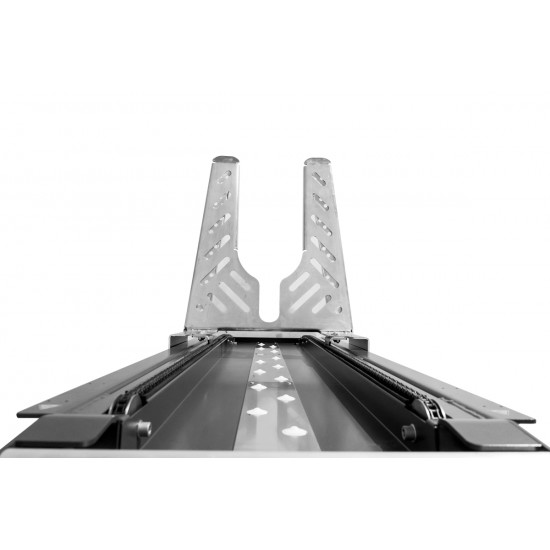

PICKING PLATFORM

IDimensions595 mm

L545 mm

AdjustmentElectric

JStroke1430 mm

Min. height from the ground60 mm

Maximum height from the ground2800 mm

Capacity120 kg

PERFORMANCE

Power supply24V

Batteries2 AGM 12V 45 Ah*

Battery charger115V–230V 50/60HZ

M1Maximum climbing ability15%

M2Surmountable landing slope15%

R1Internal turning radius900 mm

R2External turning radius2200 mm

Max. speed (rising – descending)0,15 m/s

Maximum shifting speed5 km/h

NMaximum pressure for wheel at full load **2,3 kN

* There is an intermediate step.

** Maximum pressure whereas the weight of the platform plus the maximum load on the basket are completely distributed on one side of the platform (totally asymmetric load).

Complies with European regulations for man-up forklift trucks. UNI EN ISO 3691-1.

In assessing compliance, only those standards whose proposed measures have been implemented were considered and only if a corresponding risk does indeed exist.

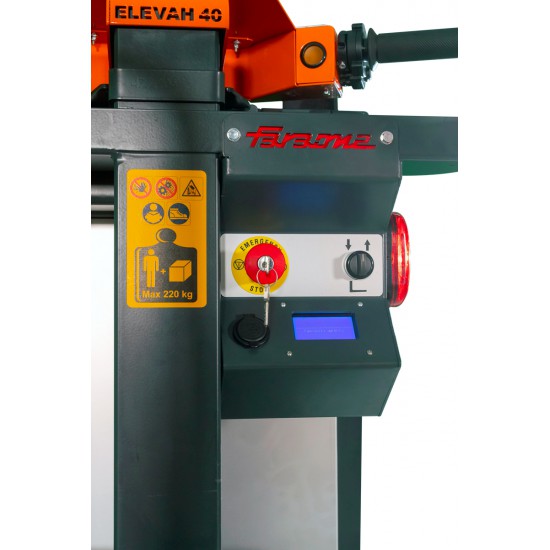

Safety equipment

Standard

Light movement indicator

Automatic electronic parking brake

Horn

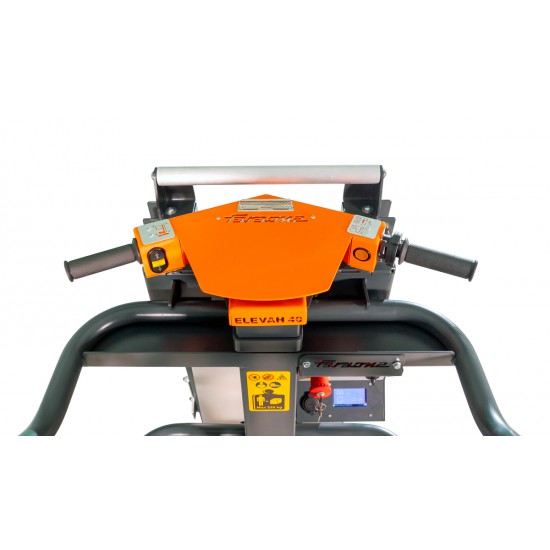

Joystick with safety catch against accidental activation

Two-hand operation

Optional

REDLIGHTSRED LIGHTS - Pair of red lateral signaling lights

E40RADAR1BRear Anti-collision Radar System for the Chassis

E40RADAR3Anti-collision Radar System to the Top (Driver’s Head protection)

E40 AN-PRCrushing protection under the basket

51 KEYMachine start-up with code (only for 24 Volt version)

IP65IP65 Certification

Ergonomics and functionality equipment

Optional

PCCCurrent socket on the basket. 24 V/5 A

E40PALLETUnloading system of the machine from truck platform without forklift

E5RLA ( l.880 )Side rollers wide 880 mm, to drive through shelf aisles

E5RLB ( l.980 )Side rollers wide 980 mm, to drive through shelf aisles

E5RLC ( l.1020 )Side rollers wide 1020 mm, to drive through shelf aisles

CLWooden Crate for shipping

PCCUSBSocket on board basket with USB socket

E40 ZI.VEElevah 40 galvanised and then painted, it guarantees higher resistance to atmospheric agents

RAL1Customised machine finish painting

RAL2Custom painting of the machine base
