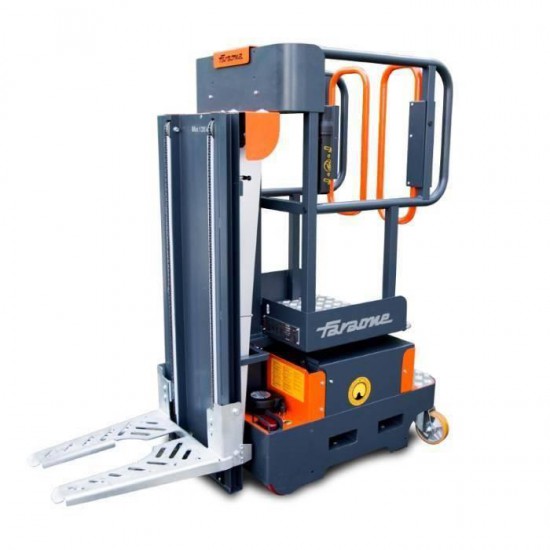

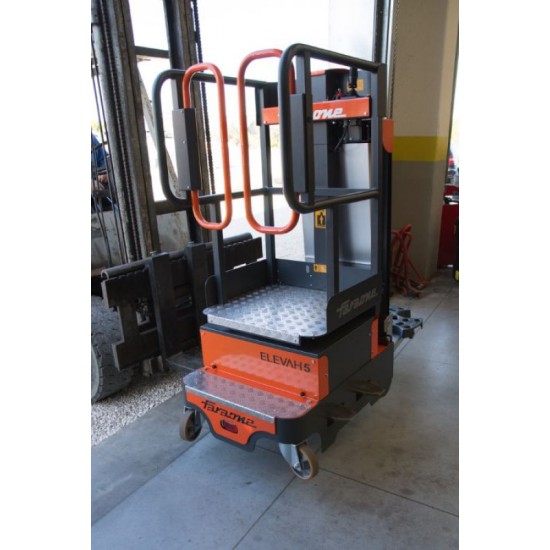

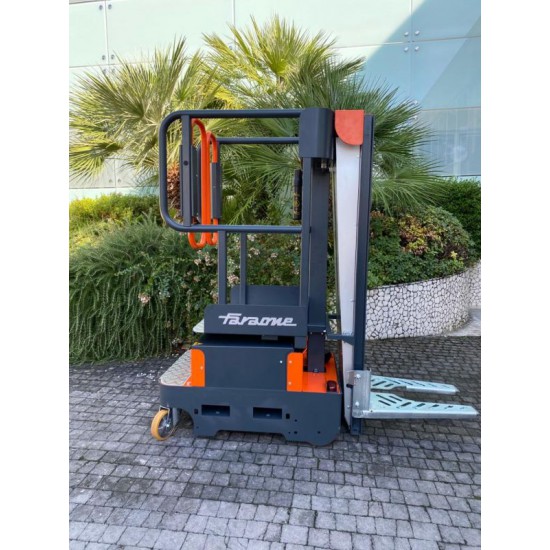

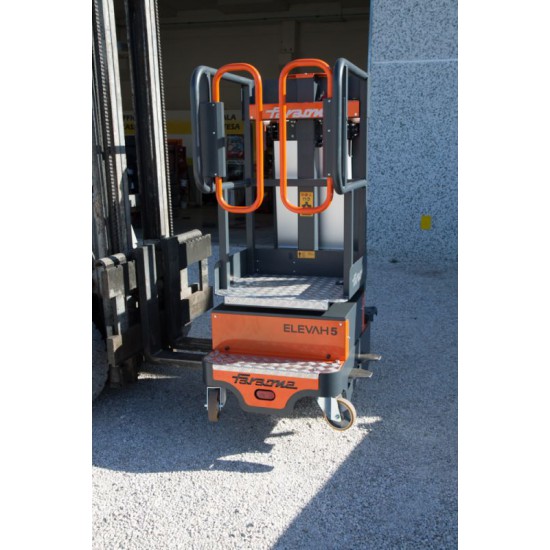

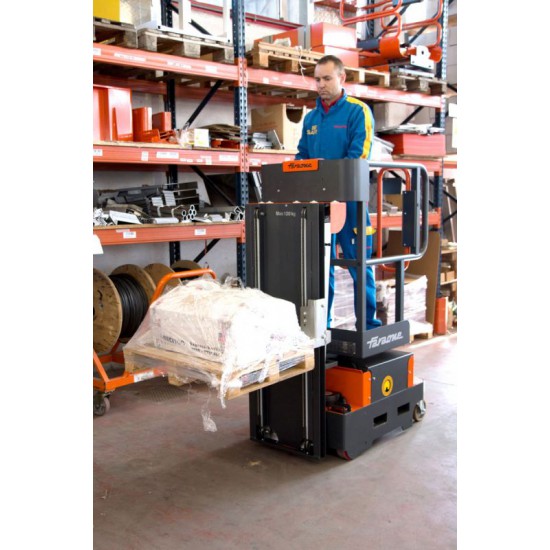

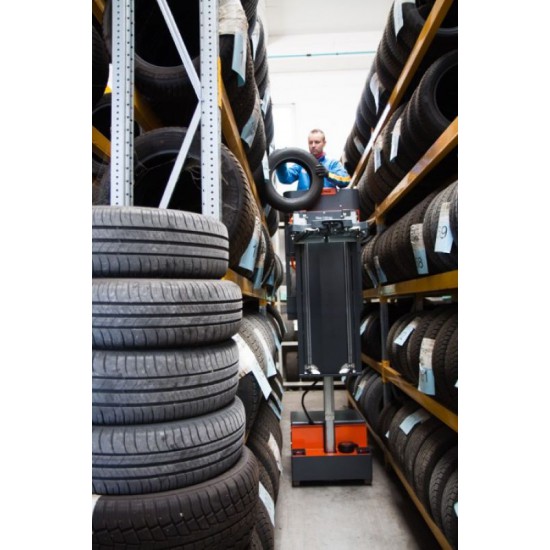

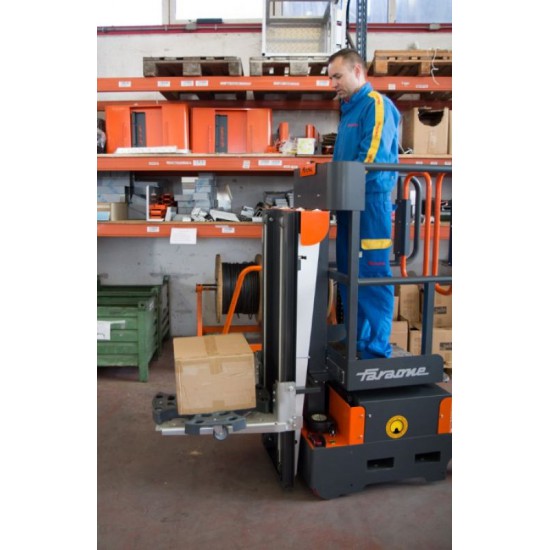

ORDER PICKER ELEVAH E5 TIRES - 5.15Μ WORKING HEIGHT

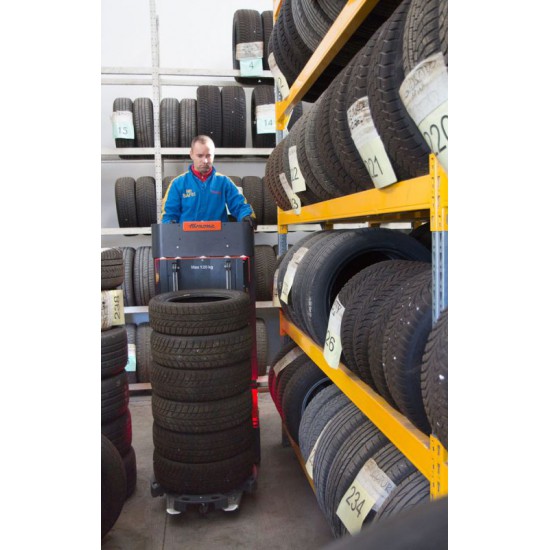

A special stock picker with a tool to lift a tire set from the ground and to store or pick it up.

FEATURES OF THE MACHINE:

• MAX. WORKING HEIGHT: 5,15 m

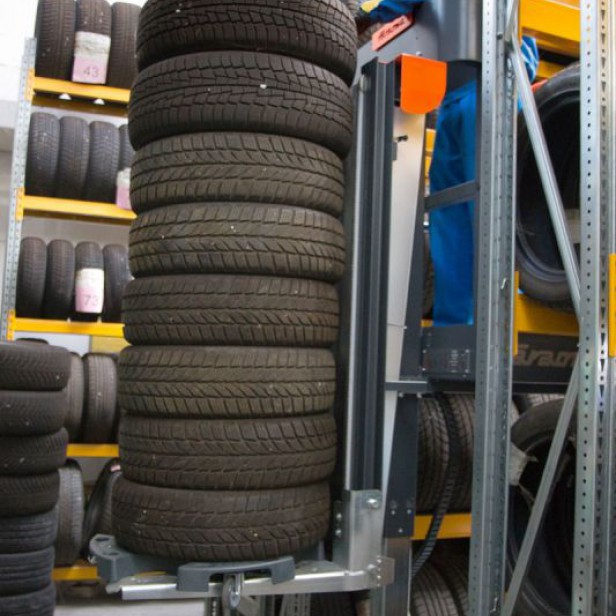

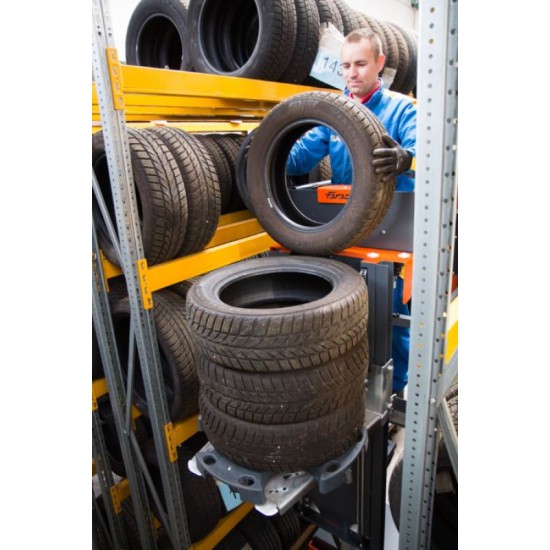

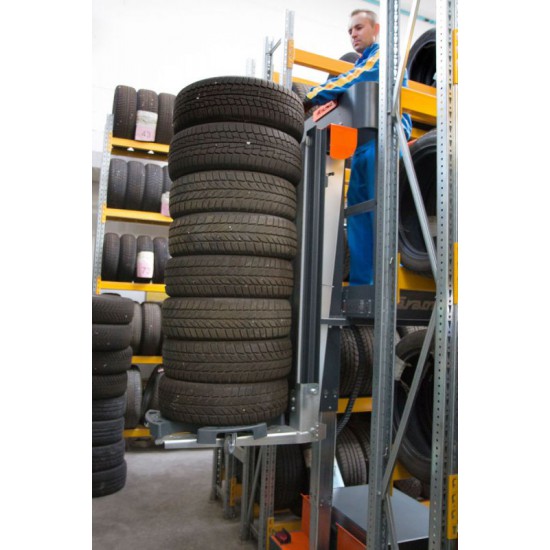

• It allows to lift a tire set directly from the ground

• COMPACT: only 70 cm wide

• MAX. CAPACITY: 220kg (1 Person)

• MANEUVERABLE: Turning radius = 0

• COMFORTABLE: practical and safe access to the platform

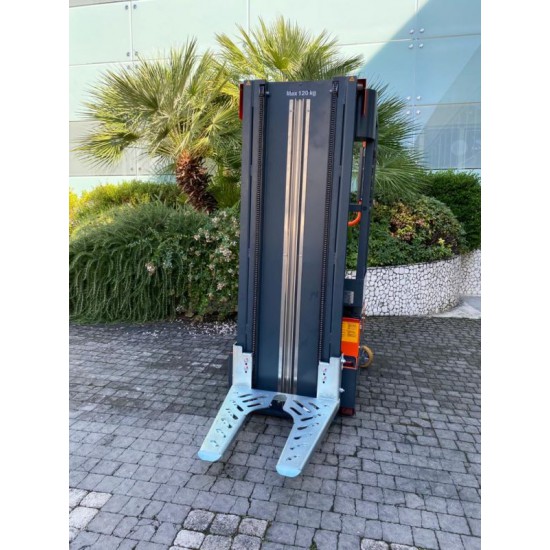

FEATURES OF THE TYRE STORAGE TOOL:

• CAPACITY: up to 150 kg load

• System for picking up the complete set of tyres directly from the ground

• Automatic adjustment of the stroke to set distance of the tires from the operator

ACCESSORY DEVICES TO INCREASE SECURITY:

The level of safety can be increased and each machine can be customised, thanks to the wide range of accessories and customisations available for each Elevah model.

• FRONT, REAR AND CEILING ANTI-COLLISION RADAR
• BASKET BLOCK: max. 1,95 m
• BLUESPOT1 AND BLUESPOT2 (driving direction signalling light)
• ANTI-CRUSHING PROTECTION UNDER THE BASKET

More Optional:

• DIFFERENT COLORING OF MACHINE UPON REQUEST
• GALVANIZING TREATMENT
• TRUCK LOADING AND UNLOADING SYSTEM
• ACCESSORY DEVICES TO INCREASE SECURITY:

The level of safety can be increased and each machine can be customised, thanks to the wide range of accessories and customisations available for each Elevah model.

• FRONT, REAR AND CEILING ANTI-COLLISION RADAR
• BASKET BLOCK: max. 1,95 m
• BLUESPOT1 AND BLUESPOT2 (driving direction signalling light)
• ANTI-CRUSHING PROTECTION UNDER THE BASKET

More Optional:

• DIFFERENT COLORING OF MACHINE UPON REQUEST
• TRUCK LOADING AND UNLOADING SYSTEM
• Charger with retractable cable is standard ( Not included If add OPTIONAL BKIT)
• The machine can work at temperatures between -15° C and +40 °C

The machine can work at temperatures between -15° C and +40 °C

• Max. working height 5,15 m
• Max capacity 220 kg
• Number of people 1
• Use Internal - External

A Closed machine height 1690 mm

B Minimum platform height 289 mm

C Maximum platform height 3150 mm

D Base overall dimensions 1790 mm

E 700 mm

F 1160 mm

G Cage dimensions 685 mm

H 600 mm

• Machine weight 775 kg
• Drive wheels dimension Ø 186 x 60 mm
• Swivel wheels dimensions Ø 150 x 40 mm

TIRES TOOL

• I Tires forks 595 mm
• L 545 mm
• Adjustment Electrical
• J Stroke 1430 mm
• Min. height from the ground 50 mm
• Maximum height from the ground 4075 mm
• Capacity 120 kg

PERFORMANCE

• Power supply 24V
• Batteries Lead-Acid Batteries 12V 105 Ah
• Battery charger 110V – 220V
• M Maximum climbing ability 15%
• Climbing ability at height 2,5%
• Internal turning radius 0
• External turning radius 1025 mm
• Max. speed (rising – descending) 0,2 m/s
• Velocita massima di translazione 5,5 km/h
• Velocita massima di translazione in quota 1 km/h
• N Maximum pressure for wheel at full load* 3,4 kN

Work cycles (with fresh batteries) ** 100

* Maximum pressure whereas the weight of the platform plus the maximum load on the basket are completely distributed on one side of the platform (totally asymmetric load).

** By work cycle we mean a self-propelled movement of 20 m with a full ascent to and descent from the maximum height and with adjustment of the loading platform.

Complies with European regulations for man-up forklift trucks. UNI EN ISO 3691-1.

accessories

• PARACO50 Two Upholstered Covers 50 cm
• REDLIGHTS RED LIGHTS - Pair of red lateral signaling lights
• PCC Current socket on the basket. 24 V/5 A
• E5RLA ( l.880 ) Side rollers wide 880 mm, to drive through shelf aisles
• E5PALLET Unloading system of the machine from truck platform without forklift
• E5RLB ( l.980 ) Side rollers wide 980 mm, to drive through shelf aisles
• E5RLC ( l.1020 ) Side rollers wide 1020 mm, to drive through shelf aisles
• E5 COV Resistant tarpaulin
• CL Wooden Crate for shipping
• PCCUSB Socket on board basket with USB socket
• PROPEPP Perimeter protection for picking platform
• RAL1 Customised machine finish painting
• RAL2 Custom painting of the machine base
• E5RADAR1B Rear Anti-collision Radar System for the Chassis
• E5 PO Protection for the operator’s head above the cage. Made of steel, it protects the operator should small objects fall from above
• BLUESPOT1P Pair of signaling lights (front + rear)
• BLUESPOT2 Pair of signaling lights (front + rear)
• 51 KEY Machine start-up with code (only for 24 Volt version)
• E5RADAR3 Anti-collision Radar System to the Top (Driver’s Head protection)
• BG Batteries without maintenance Trojan mod. 31 AGM 100 Ah (1 Kit)
• LITIO 4 Kit with 2 Trojan 12.8 Volt 110 A lithium batteries + increased battery charger. minimum operating temperature 4 °
• E5 ZI.VE Elevah 5 ZI.VE
• E5 AN-PR Crushing protection under the basketE5BLMA Directional electric block that can be activated at height, and double steering wheels with anti-crushing protection.
• KEY ACC KEY ACC
• 51 IN Additional control button to operate the machine with both hands
• IP65 IP65 Certification. Requires AGM batteries
• BSA Door block by lifted basket
• SCP Extra remote control for loading on ramps
• E5 GREEN E5 GREEN
• E5 WHITE E5 WHITE
• TA 11 Cushioning Pad in EVA
• E5 SCR Loading system for ramps
• 2Trolley6 Kit 6 Trolleys for tires, 630 mm capacity kg 120,four wheels with brake
