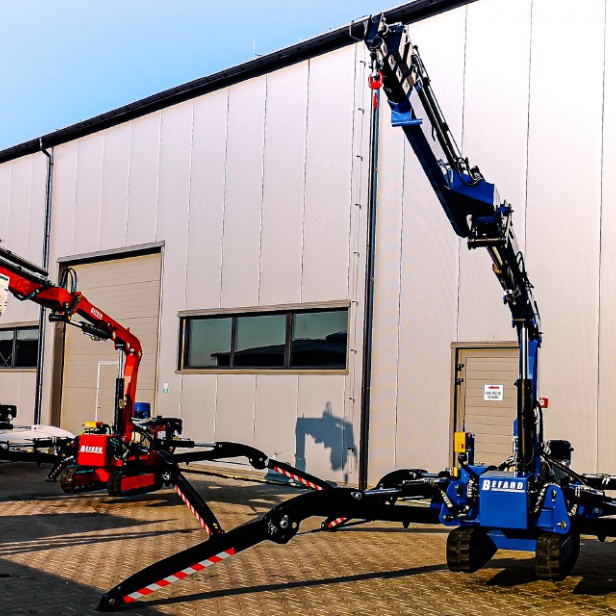

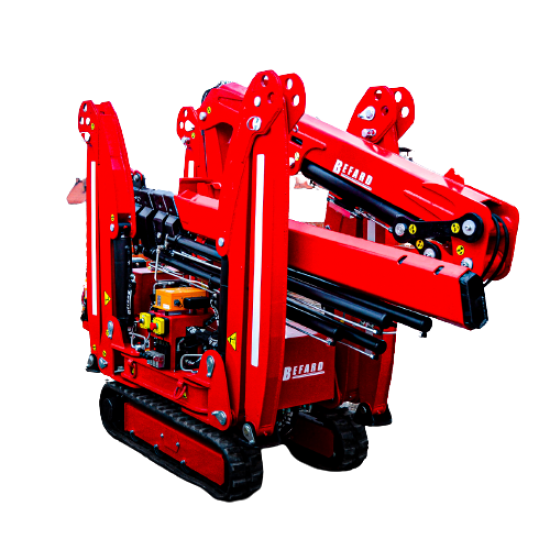

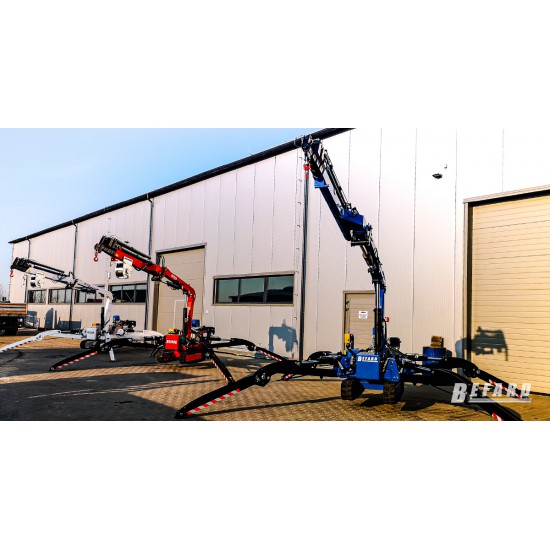

BEFARD MINI CRAWLER CRABE TB5000 - 2400KG 13M

BEFARD TB 5000

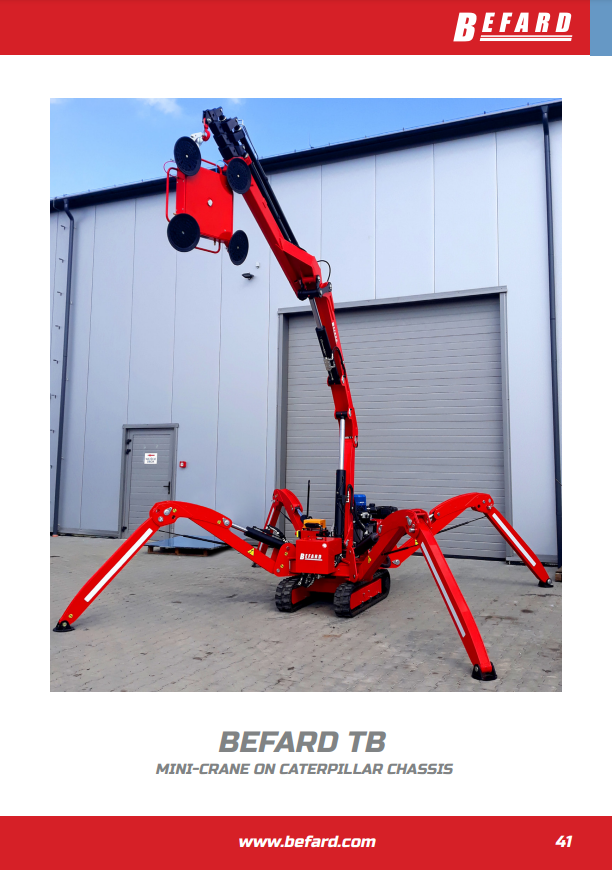

Mini cranes on tracked chassis for indoor and outdoor use Maximum hoist capacity: 2400 kg.

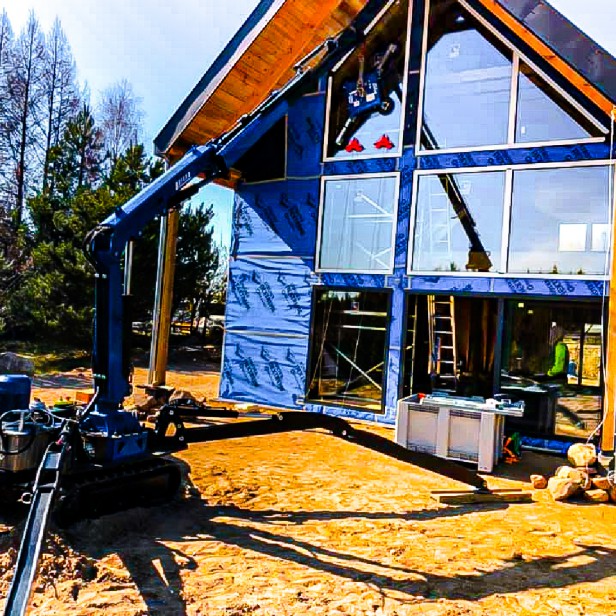

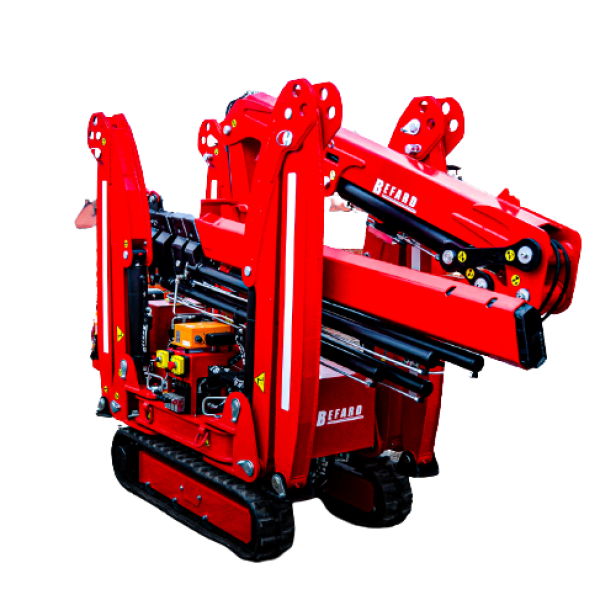

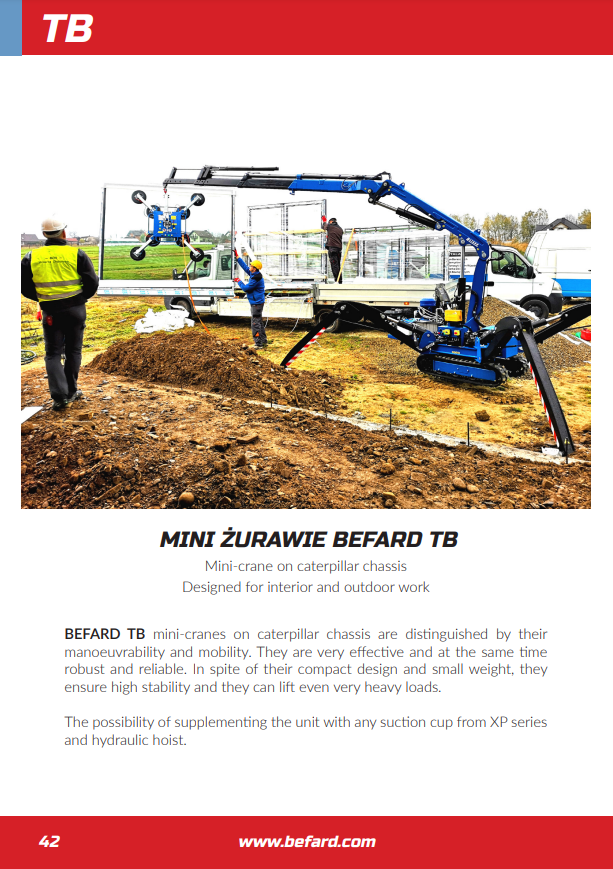

• Mini cranes on BEFARD TB tracked chassis for indoor and outdoor use stand out thanks to their maneuverability and mobility.
• They are very effective, yet robust and reliable. Despite their compact design and low weight, they are very stable and can lift even very heavy loads.

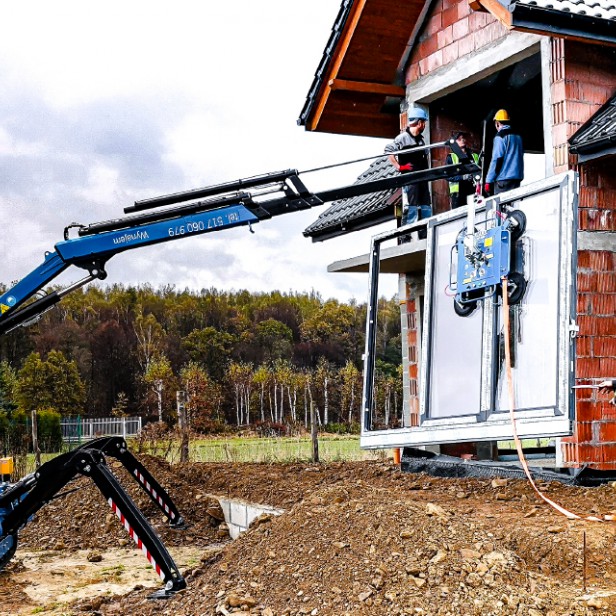

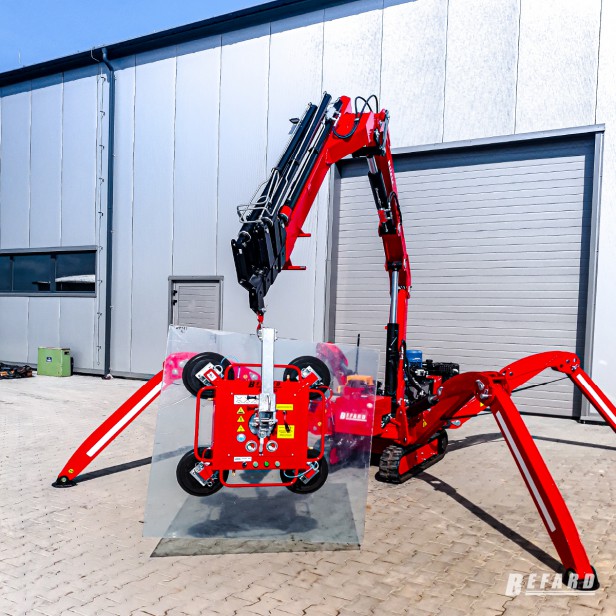

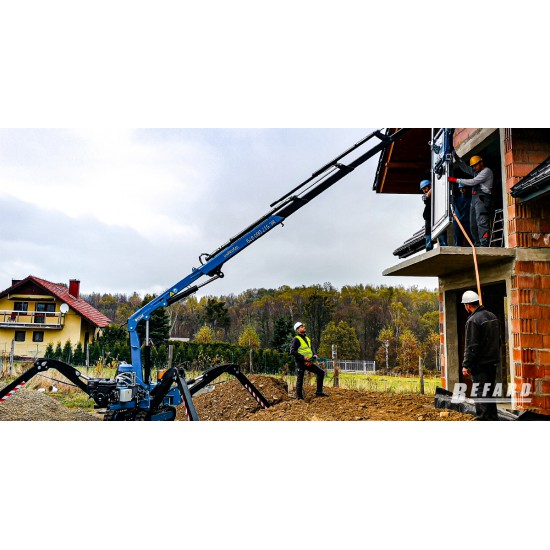

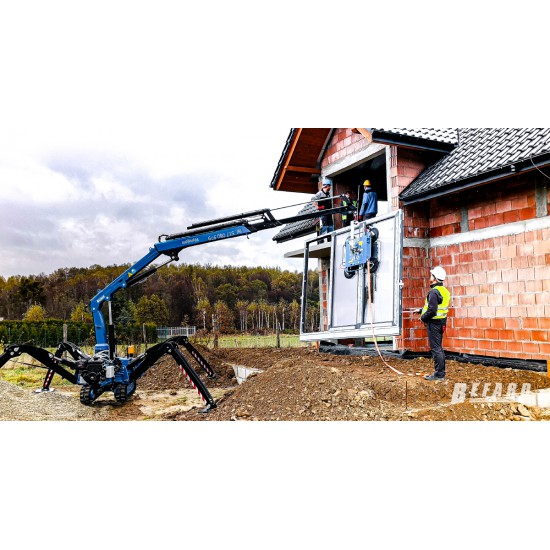

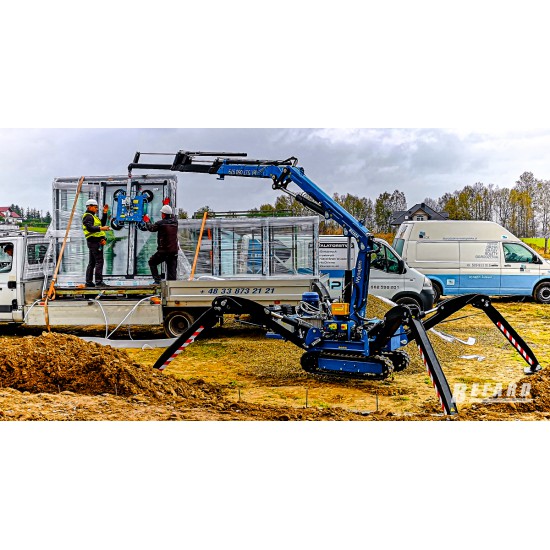

• The unit can be retrofitted with any XP and XR series vacuum suction cup and a hydraulic winch.

The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU

 All BEFARD devices are covered by a 12-month warranty.

Specification:

                BEFARD TB 5000

• Radio controlled               driving, operation and foot deployment
• Dual power supply          fuel and electric

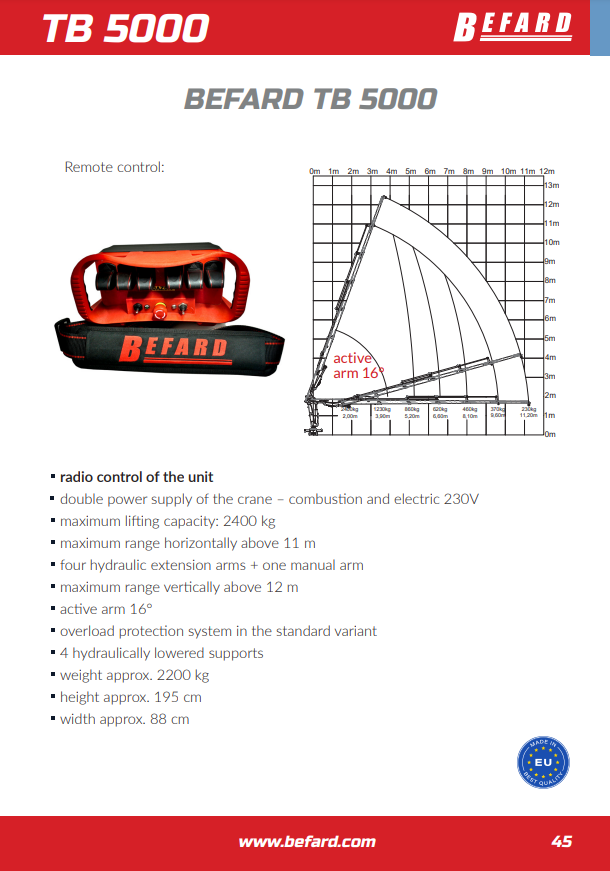

• Maximum hoist capacity (as shown in the diagram)          2400 kg
• Anti-overload system    yes
• Hydraulic extensions      4x hydraulic
• 1x manual
• Maximum horizontal outreach   11 m
• Maximum vertical outreach above           13 m
• Active boom      16°
• Supports              four manually unfolded feet with hydraulic deployment
• Weight 2200 kg
• Height   195 cm
• Width    88 cm
