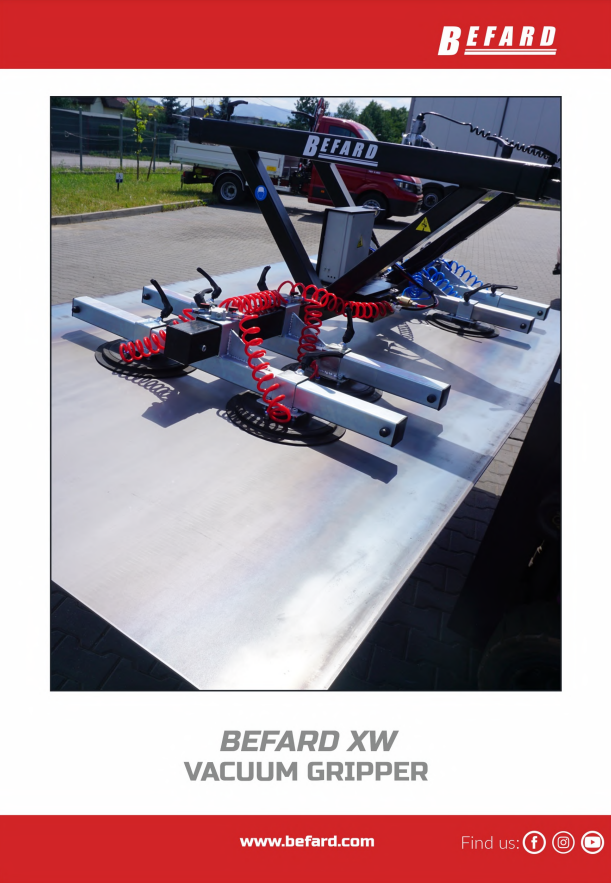

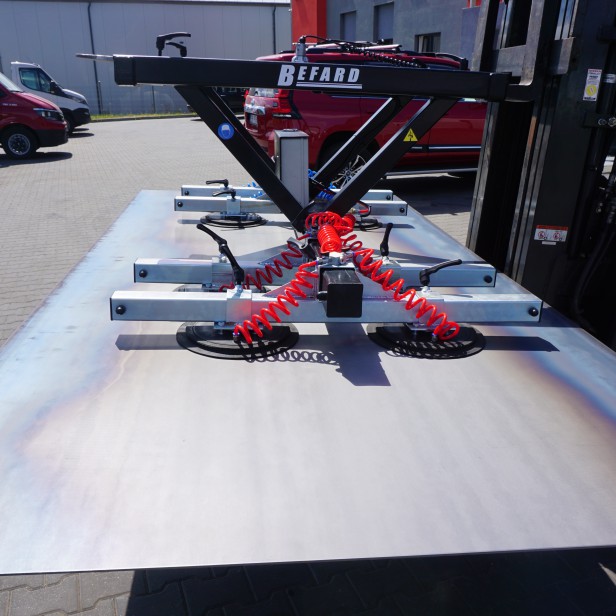

BEFARD UNIVERSAL VACUUM GRIPPER FOR USE WITH FORKLIFT XW 650 360KG -1260KG

BEFARD XW 650

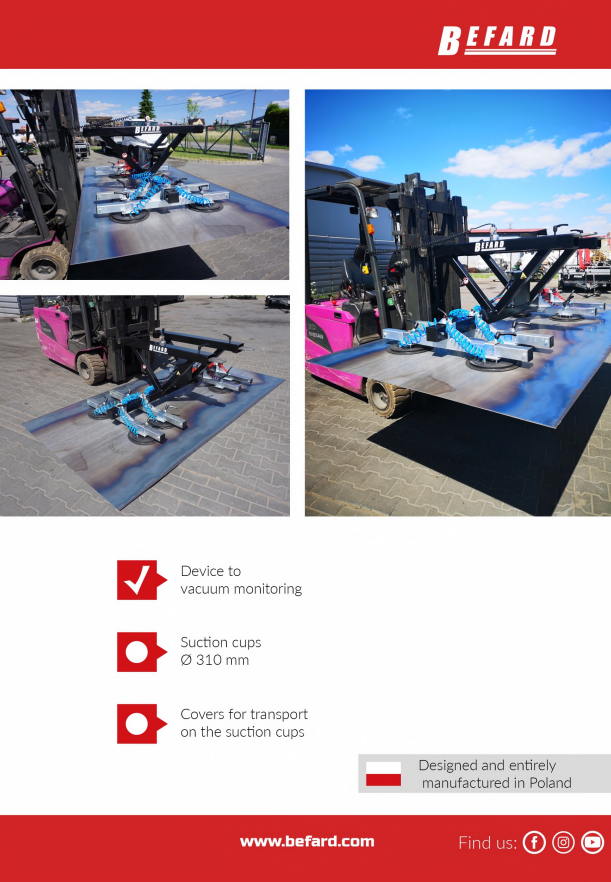

Vacuum gripper designed to work with a forklift.

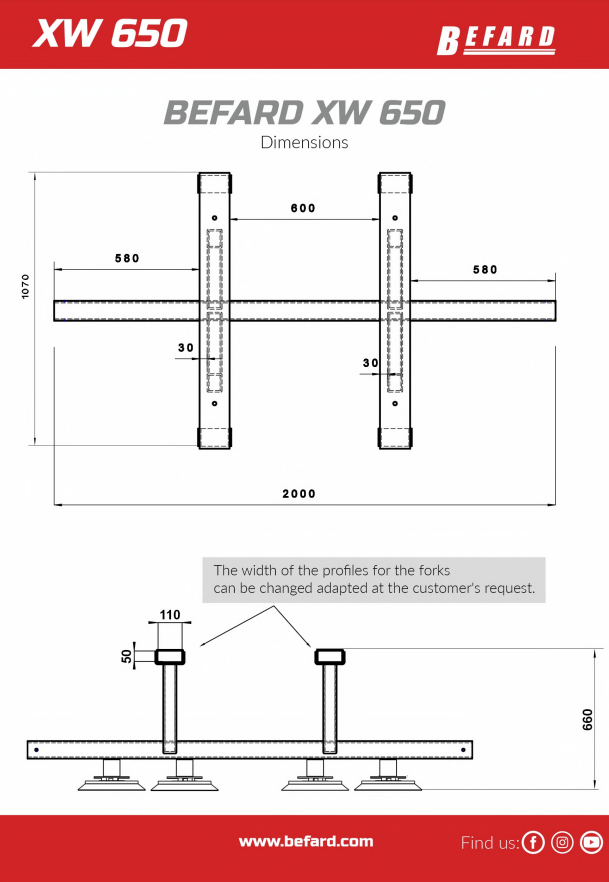

The BEFARD XW vacuum gripper was designed to be used in conjunction with forklifts. A specially prepared structure makes the XW compatible with the standard track. It is possible to adjust the mounting spacing for a different size of forks. The device is designed for horizontal operation.

•  Lowering costs and increasing safety
• Manual adjustment of the spacing of the suction cups
• Integrated vacuum measurement and monitoring device
• Designed to work horizontally
• Easy, individual configuration of the suction cups, without the use of specialized tools
• Quick lashing and unlashing of the load

The device meets the requirements of the Basic Machinery Directive 2006/42 / EC and Directive 2014/30 / EU.

* All BEFARD devices are covered by a 12-month warranty.

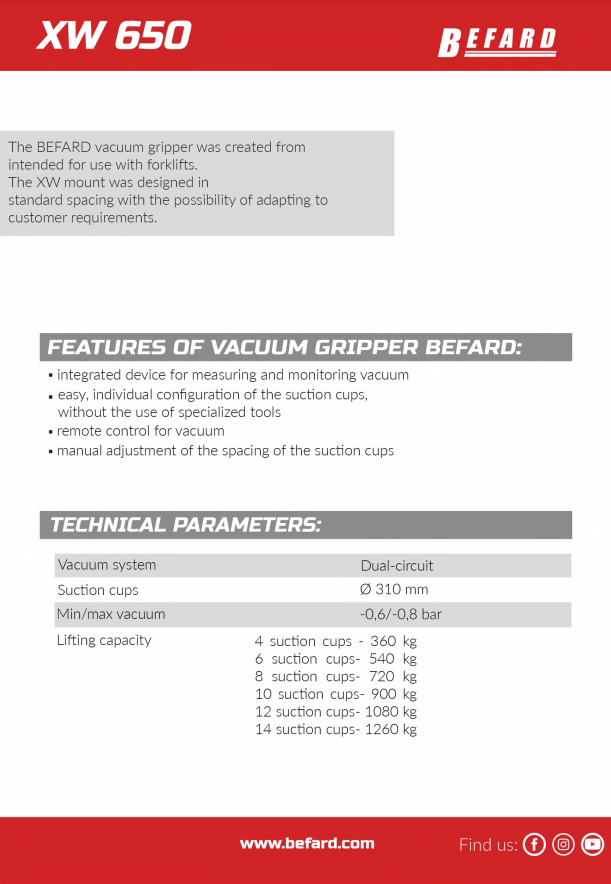

Specification:

                BEFARD XW 650

• Vacuum systemy             dual-circuit
• Suction cups       ⌀ 310 mm
• Min/max vacuum            -0,6/ -0,8 bar

Lifting capacity:

•  4 Suction cups - 360 kg
• 6 Suction cups - 540 kg
• 8 Suction cups - 720 kg
• 10 Suction cups - 900 kg
• 12 Suction cups - 1080 kg
• 14 Suction cups - 1260 kg
