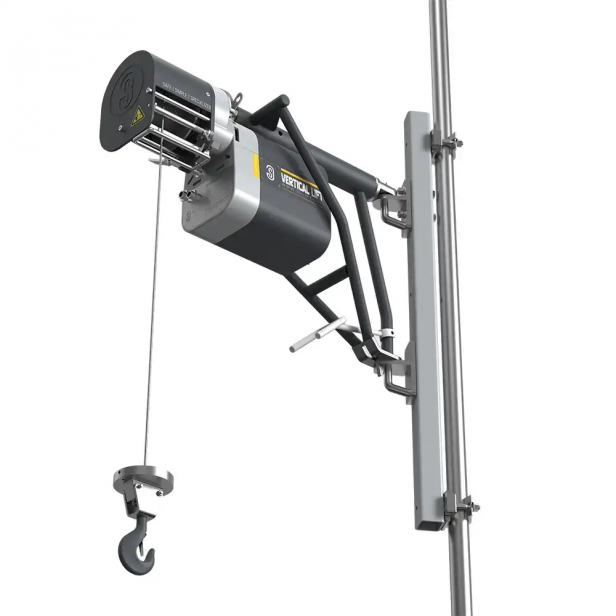

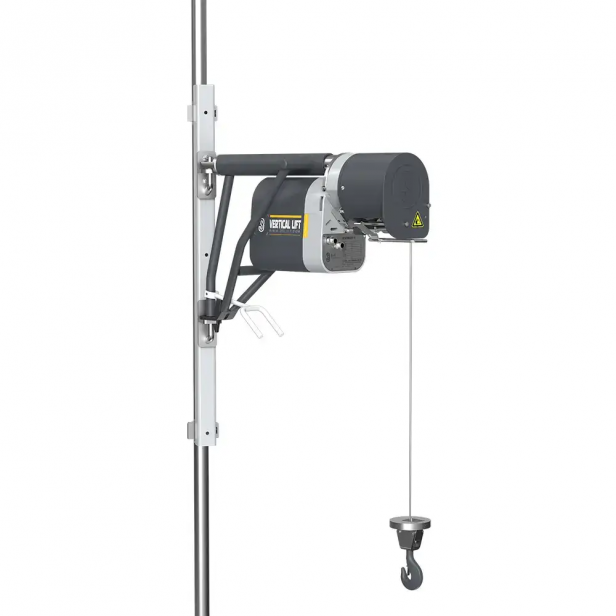

3S INDUSTRY ELECTRIC ROPE HOIST RH-T250 - 25M-50M 250KG

An electric rope hoist is a light-duty, easy-to-install, and compact lifting appliance. It is intended to lift loads to specified height in a reliable and effective manner.

• Scaffolding adaptor bar: Enables easy and quick connection to the scaffolding upright tube by couplings.


• Swivel arm assembly: Rotatable up to 180°, allowing loads lifting and lowering from/to multiple positions.


• Hoist drum: Connected to the hoist drive to provide orderly rope winding and unwinding. Minimized friction and even stress distribution enhances lifespan.


• Gear transmission: Providing reliable and smooth hoist operation.


• Hoisting and lowering limit mechanism: Enhancing safety for hoisting and lowering operation

Key Features

• Multipurpose: Various types of carrier platforms meet the needs of almost any scenario.
• Simple: Easy and quick mounting to scaffolding structure via couplings. Mounting can be completed in as quick as 10 min by two technicians.

• Portable: The small‑sized and lightweight design is suitable for regular truck or van transport.

• Stable: Gear transmission provides stable and reliable operating experience.

• Reliable: The functions of fall protection, overload detection, power failure protection, and emergency braking prevent damage to the property and personnel.

Application scenarios:

• Building construction and maintenance

• Scaffolding components transportation

• Construction materials transportation.
