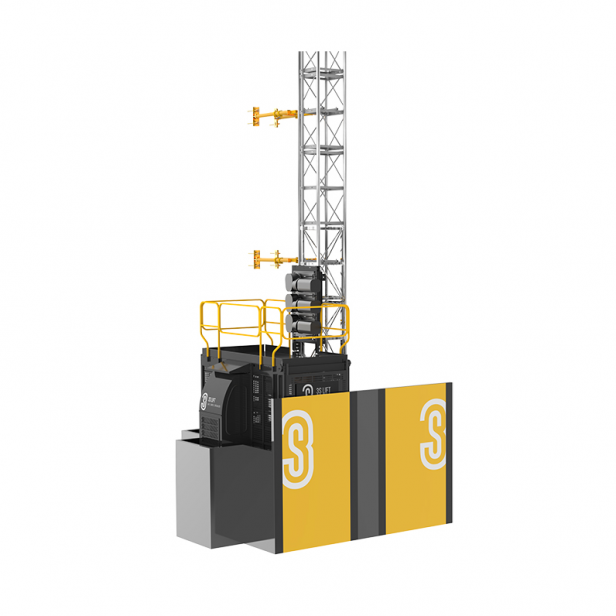

3S INDUSTRY CONSTRUCTION HOIST SERIES 450/650A/650B 1000KG-2000KG

Construction Hoist Series
The construction hoist is a crucial piece of lifting machinery used in the construction industry, providing vertical access for operators, materials, and equipment. It is primarily used for working at heights, transporting materials, installing equipment, and performing cleaning and renovation tasks at construction sites. This essential vertical access solution is indispensable for construction projects.

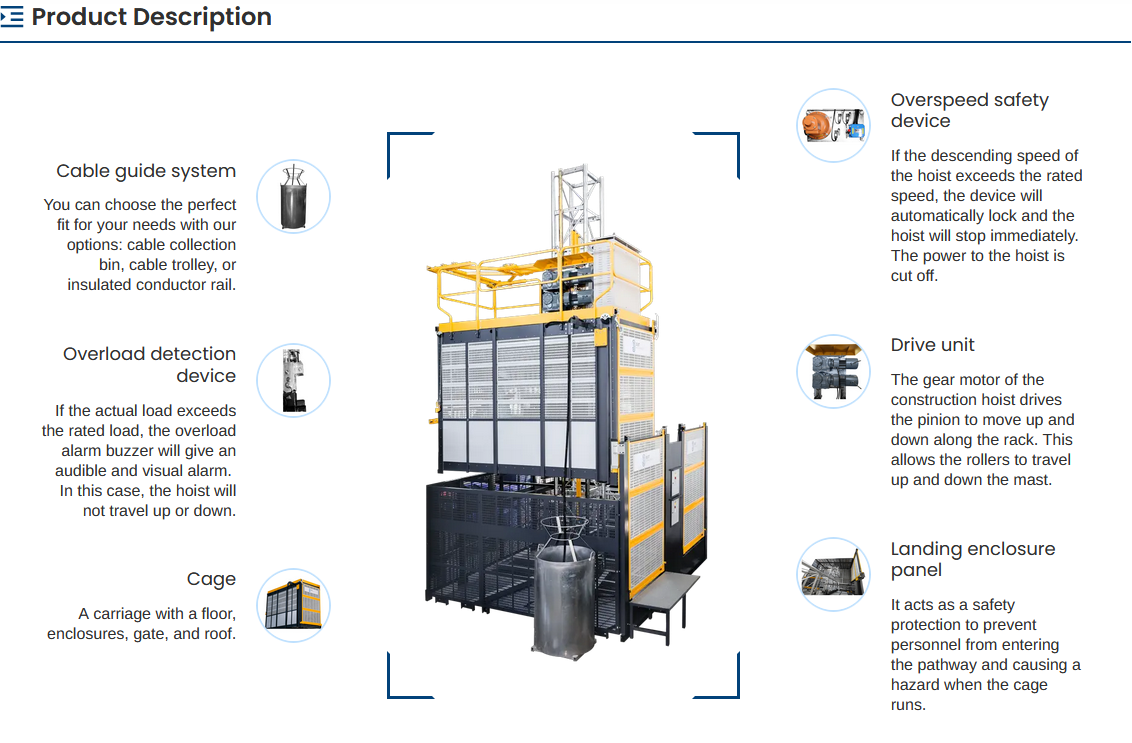

• Cable guide system
  You can choose the perfect fit for your needs with our options: cable collection bin, cable trolley, or insulated conductor rail.


• Overload detection device
  If the actual load exceeds the rated load, the overload alarm buzzer will give an audible and visual alarm.  In this case, the hoist will not travel up or down.

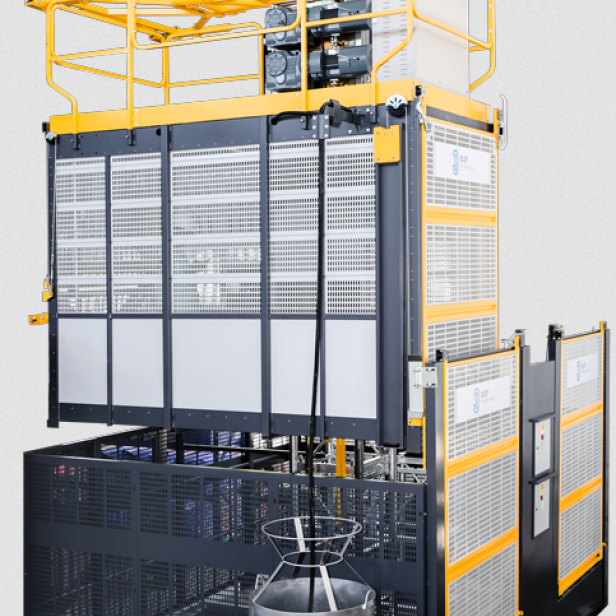

• Cage
  A carriage with a floor, enclosures, gate, and roof.


• Overspeed safety device
  If the descending speed of the hoist exceeds the rated speed, the device will automatically lock and the hoist will stop immediately. The power to the hoist is cut off.


• Drive unit
  The gear motor of the construction hoist drives the pinion to move up and down along the rack. This allows the rollers to travel up and down the mast.


• Landing enclosure panel
  It acts as a safety protection to prevent personnel from entering the pathway and causing a hazard when the cage runs.



Key Features

• Modular design and flexible combination into a variety of models.
• Robust and durable, with a long service life.
• Simple structure, more convenient installation, disassembly, and maintenance.
• Direct start control.
• Several cage sizes to suit different requirements.
• Optional operator cabin.
