SAECLIMBER - Transport Platform PH10/H10 - 120Μ 1000KG

Transport Platform PH10/H10

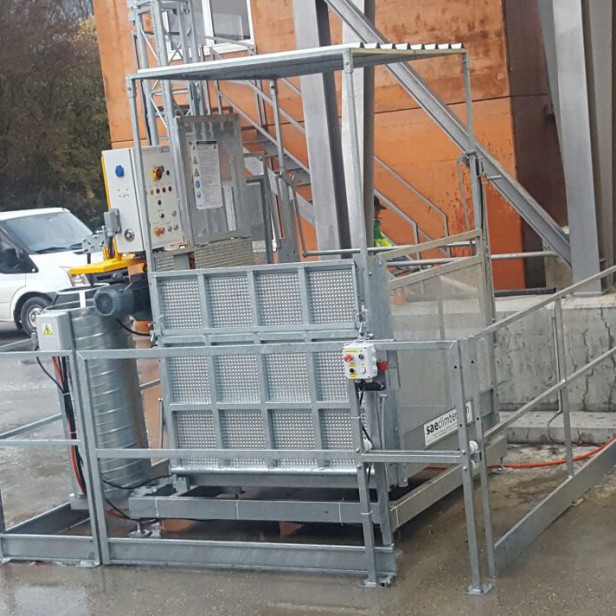

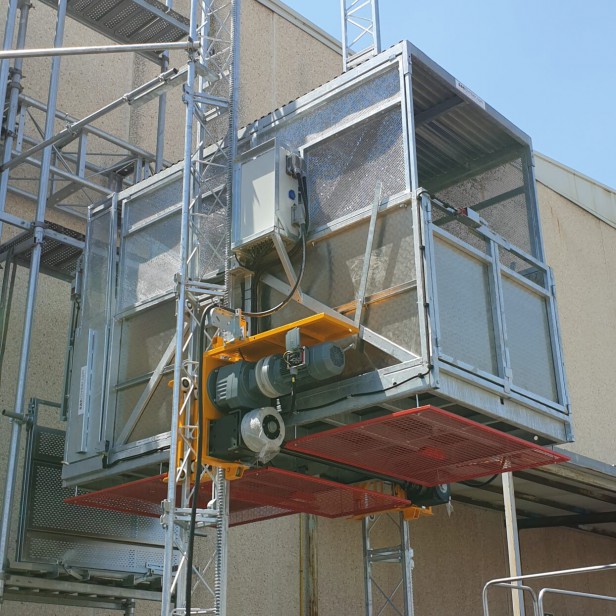

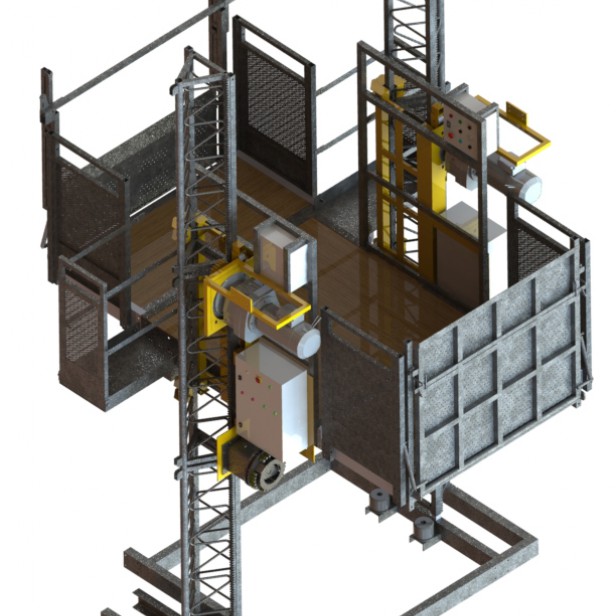

PH10 is a transport platform for people and materials regulated according to EN 12158 and EN 16719. It is part of the PH10 modular system. Available at 12 m/min (maximum permissible speed according to regulations), or dual speed version 12/24 m/min with inverter (VFC) for mixed use transport platform/material hoist. Also available as material only hoists (model H10) with automatic control to the landings. The PH10 transport platform is equipped with modular system and interchangeable doors for maximum flexibility of use on site. Mast Section is the same of E05, PH5, H5 and E10

ADVANTAGES
Reasons to choose the PH10:

• Ideal for city works.
• Simple and reliable.
• Fast in assembly.
• Economic but performing.

SAFETY DEVICES

• Base chassis with certified Rubber shock absorbers
• Cable basket or cable trolley
• Overload device (detection by load cells)
• Ascend & descend limit switch
• Mast ascend & descend emergency limit switch
• Mast detection inductive limit switch
• Power cable anticut limit switch and anti‐tear device, for electric cable protection (avoiding cable rupture)
• Electromechanical limit switch for cage landing door Inductive for cage boarding door
• Ladder limit switch
• Mast and anchorage trapdoor limit switch
• Landing door mechanical limit switch: Do not open if the cabin is not at the floor
• Base enclosure access door electromechanical limit switch : Do not open if the cabin is not at the ground
• Ground enclosure
• Anti‐over‐run mechanical device
• First class Self‐braking motor gear
• External independent parachute  emergency brake (CE certified)
• Terminal Mast section with half rack to avoid overrun
• Platform or roof hatch for erection with safety rails and safety limit switch
• Visual Diagnostic of malfunctioning
• Device for manual descent in case of power failure
• Emergency light with battery or Led  (CE) inside Cabin
• All steel material of the supply, including the cabin, is hot galvanized
• Magnetothermal protections and differential ampere switchetche
