SAECLIMBER - Construction Hoists E20 - 250M 2000KG

Construction Hoists E20

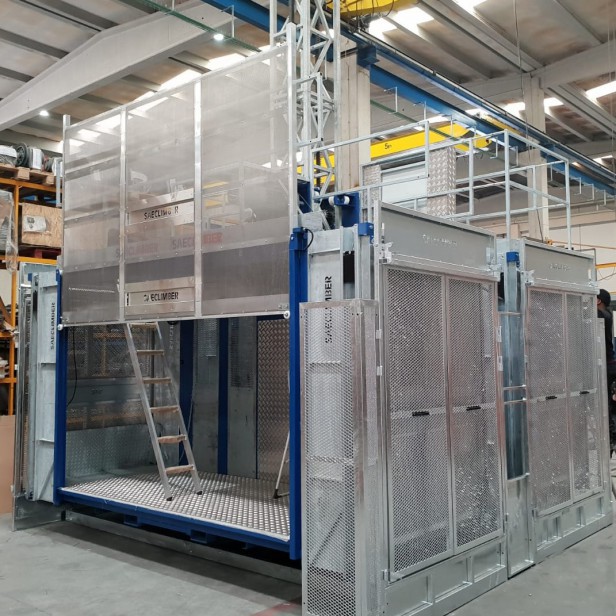

The SAEclimber Construction Hoist E20 is according to EN 12159 standard. Available in 3 different motor configurations with the following speeds: 28 m/min, ó 40 m/min (with VFC) ó 60 m/min (with VFC). Available in single or twin cage version with a payload of 2.000 Kg each cabin. The E20 is made to be used in very intense working conditions, with highrise buildings and when many people and materials need to be lifted up. Mast Section compatible with our Only Goods hoist H20 and Transport Platform PH20 as well as our Mast Climbing Work Platform P45.

ADVANTAGES
Reasons for choosing the E20 model:

• For works with large displacements and big heights.
• High speed hoist.
• Big cabin with modular solution up to a length of 4,5 m.
• Twin cage version available.

SAFETY DEVICES

• Base chassis with certified Rubber shock absorbers
• Cable basket or cable trolley
• Overload device (detection by load cells)
• Ascend & descend limit switch
• Mast ascend & descend emergency limit switch
• Mast detection inductive limit switch
• Power cable anticut limit switch and anti‐tear device, for electric cable protection (avoiding cable rupture)
• Electromechanical limit switch for cage landing door Inductive for cage boarding door
• Ladder limit switch
• Mast and anchorage trapdoor limit switch
• Landing door mechanical limit switch: Do not open if the cabin is not at the floor
• Base enclosure access door electromechanical limit switch : Do not open if the cabin is not at the ground
• Ground enclosure
• Anti‐over‐run mechanical device

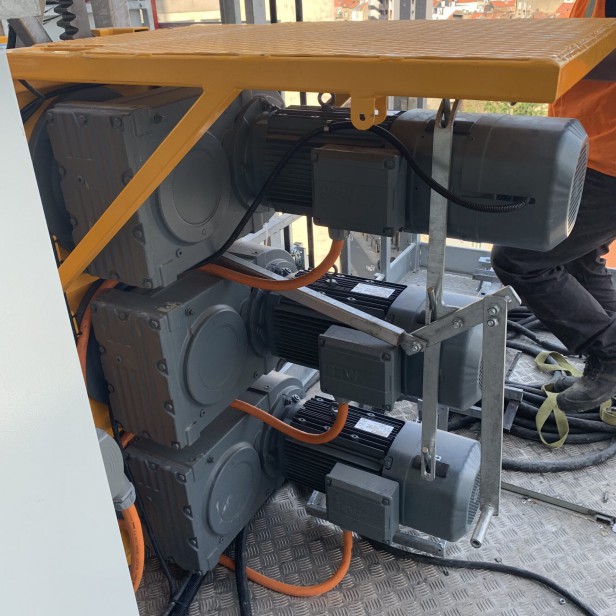

• First class Self‐braking motor gear
• External independent parachute  emergency brake (CE certified)
• Terminal Mast section with half rack to avoid overrun
• Platform or roof hatch for erection with safety rails and safety limit switch
• Visual Diagnostic of malfunctioning
• Device for manual descent in case of power failure
• Emergency light with battery or Led  (CE) inside Cabin
• All steel material of the supply, including the cabin, is hot galvanized
• Magnetothermal protections and differential ampere switchetche
