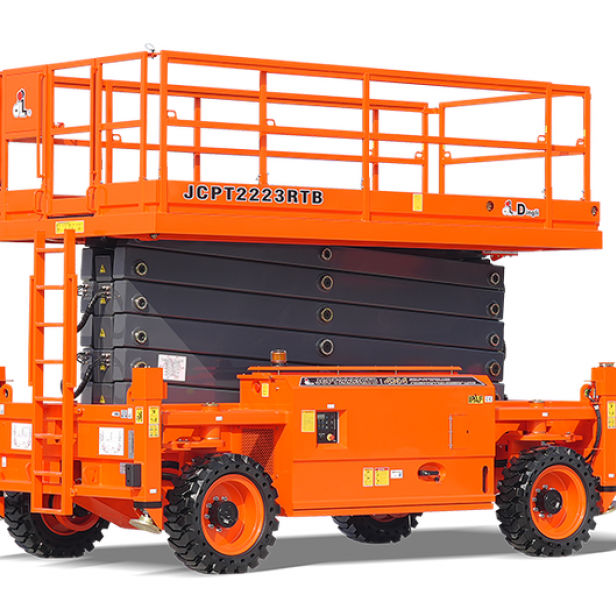

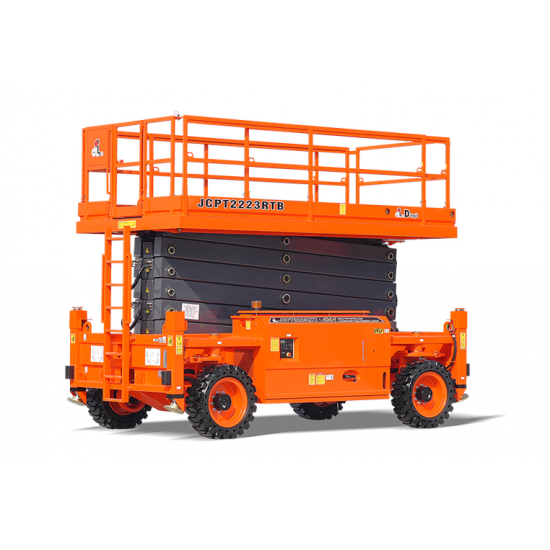

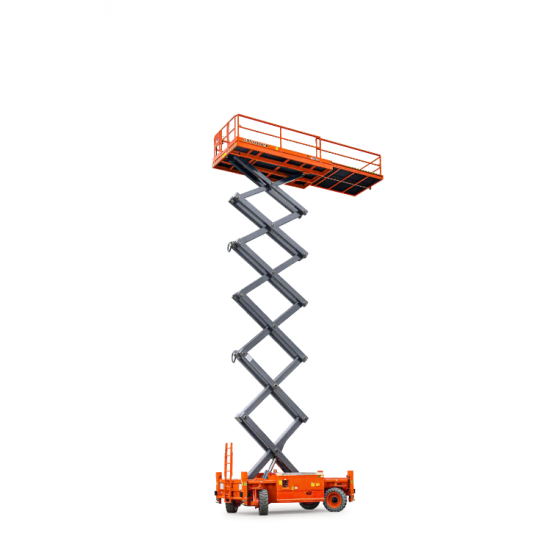

Dingli JCPT2223RTB | Diesel scissor lift with working height 22 meters and lifting capacity 750 kg

The JCPT2223RTB is a diesel-powered scissor lift equipped with a 36.4 kW high-power engine, delivering strong performance. It is driveable at full height with a 750 kg load. Featuring four-wheel drive and steering, it offers excellent rough-terrain capability and automatic leveling for stability. The large deck with one-key extension can be stopped at any point, enhancing operational convenience.

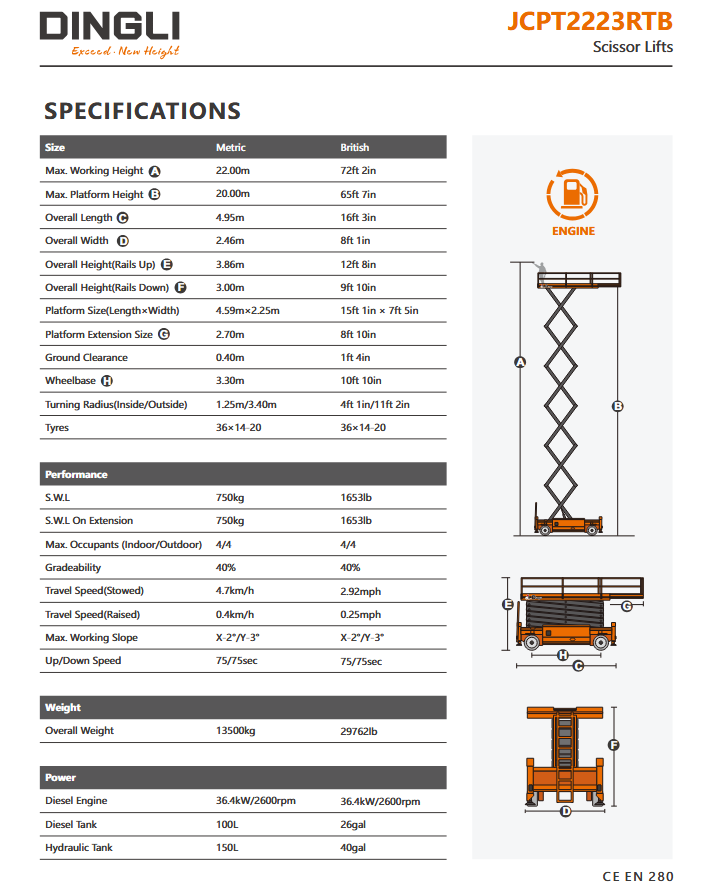

Max. Working Height: 22.00m
Safe Working Load: 750kg
Overall Length/Width: 4.95m*2.46m

FEATURES

• Proportional Joystick Controls
• Self-Locking Gates
• Automatic One-Way Platform Extension Deck
• Four-Wheel Drive
• Four-Wheel Steering
• Automatic Braking System
• Self-Weight Lowering System
• Tubing Explosion-Proof System
• Onboard Fault Diagnostic System
• Tilt Alarm
• Motion Alarm
• Horn
• Hour Meter
• Hydraulic Oil Cooling System
• Flashing LED Beacon
• Foldable Guard Rails
• Drive Enable
• Manual Brake Release
• Lanyard Attachment Point
• Tie-Down And Lifting Points
• Automatic Leveling Hydraulic Outriggers
• Anti-Restart Engine Protection
• Emergency Pump
• Emergency Stop Button
• Platform Load Sense System
• Drivable At Full Height
