Platform Basket Spider 13.65 | A compact Hybrid tracked self-propelled spider lift with telescopic boom, 13.40 m working height, 7.00 m outreach and 200 kg capacity.

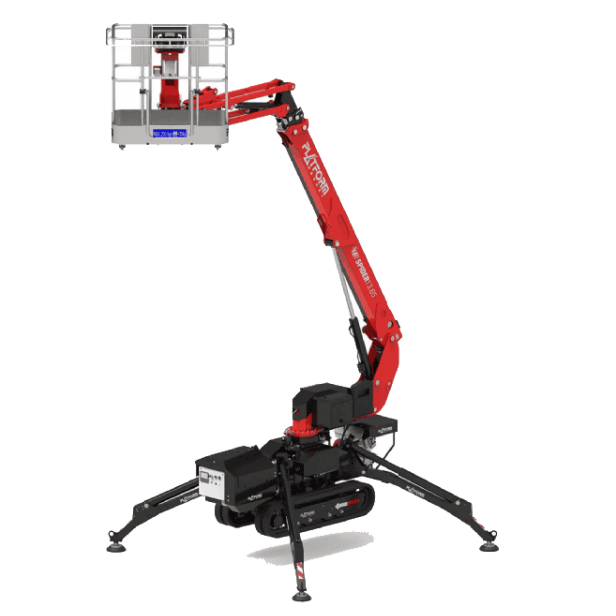

SPIDER 13.65

Compact, simple, and lightweight for any type of use

• Exceptional height stability

• Ultra-compact stabilization with zero tail swing

• Agile and stable thanks to the variable-width crawler track undercarriage

• Simple and intuitive onboard controls

• Ultra-light and easy to transport

• Extremely precise and convenient basket positioning

• Standard two-speed drive selection

• Metal covers for protection against falling objects

• Standard air/water and 230V AC power outlets in the basket

• Quick and easy basket removal and reattachment

The Spider 13.65 has established itself as a major innovation in the tracked aerial platform market, as it is the only telescopic model featuring a jib.
Its crawler track undercarriage provides excellent stability in a very compact format, thanks to its narrow-width mode.

The extendible crawler track undercarriage also increases the ground clearance when widened, allowing smooth operation on unpaved terrain and the ability to climb slopes greater than 50%.

The platform is very easy to use and ideal for rental fleets due to its simple and intuitive controls.

When in “narrow undercarriage” mode, the Spider 13.65 is compact enough to pass through a standard doorway.

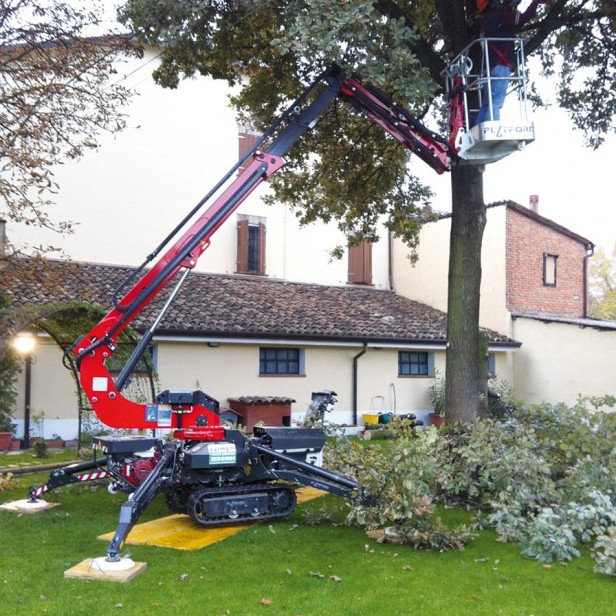

It is stable and easy to transport, making it suitable for confined spaces and perfect for jobs such as tree trimming, pruning, maintenance, painting, and any height work where conventional platforms cannot reach.
