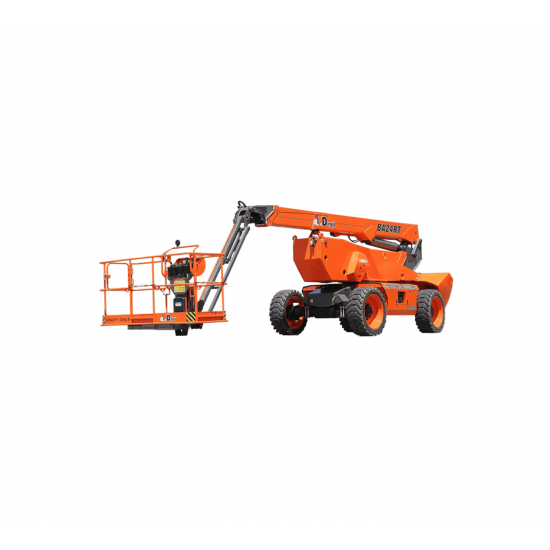

Dingli BA24RT | Diesel Articulated Boom Lift with 24.3 m working height and 300 kg safe working load

BA24RT - M Series

The BA24RT from the M Series features below-ground reach capability and a wide horizontal outreach. Developed by MAGNI, DINGLI’s Italian R&D center, it offers a modular design both horizontally and vertically, with 85% of components standardized across the full range. Electric, diesel, and hybrid models are all developed on the same platform. The machine is equipped with an integrated axle, four-wheel drive, and steering, with a 100% hydraulic differential lock, providing strong power and excellent rough-terrain performance. Its downward component design lowers the center of gravity for enhanced stability. Suitable for standard container transport, the BA24RT is powered by a high-power 55.4 kW engine with a gradeability of up to 45%.

Standard Items:

• 2.31 m (7ft 7in) Jib
• Front oscillating axle
• Four-wheel steering
• Four-wheel drive
• Self-leveling platform
• 180° left and right swing platform
• Proportional joystick controls
• Thumb rocker steering
• Drive enable
• AC power cord to platform
• Tilt alarm
• Descent alarm
• Flash
• Horn
• Hour meter
• Integral special drive axle for construction machinery
• 360° continuous turntable rotation
• Positive traction four-wheel drive
• Platform load sensing system
• Fault diagnosis system
• Operator anti-crushing protection system
• Harsh environment kits
• 12V DC auxiliary power
• Deutz D2.9 L4 55.4 kW / 2600 rpm diesel engine
• Hydraulic oil radiator
• Anti-restart engine protection
• Anti-reverse engine device
• Automatic engine shutdown in case of fault

BA24RT
