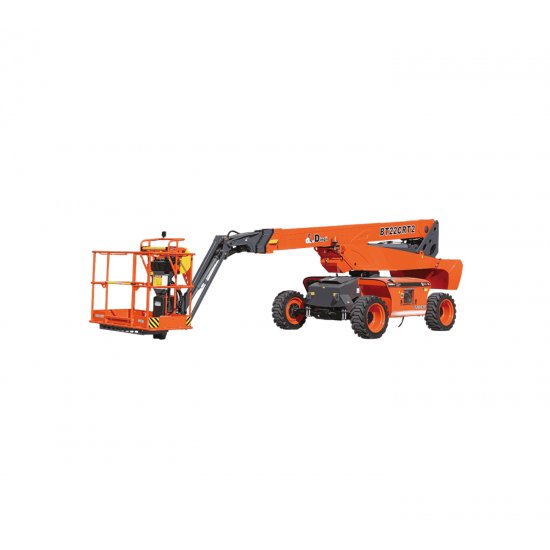

Dingli BT22CRT2 | Diesel Telescopic Boom Lift with 22.22 m working height and 320 kg safe working load

BT22CRT2 - D Series

The BT22CRT2 from DINGLI’s D Series was developed by the company’s domestic R&D center. It features a modular design both horizontally and vertically, with 85% of components common across the full range. The machine is equipped with an integrated axle, four-wheel drive, and two-wheel steering. Its downward component design lowers the center of gravity, making it lightweight, energy-efficient, and more stable. It is driveable at full height with a large load capacity of 320 kg and is suitable for standard container transport. It comes with an 18.2 kW low-power engine.

Standard Items:

• 1.50 m (4ft 11in) Jib
• Front oscillating axle
• Two-wheel steering
• Four-wheel drive
• Self-leveling platform
• 180° left and right swing platform
• Proportional joystick controls
• Thumb rocker steering
• Drive enable
• AC power cord to platform
• Tilt alarm
• Descent alarm
• Flash
• Horn
• Hour meter
• Integral special drive axle for construction machinery
• 360° continuous turntable rotation
• Positive traction four-wheel drive
• Platform load sensing system
• Fault diagnosis system
• Operator anti-crushing protection system
• Harsh environment kits
• 12V DC auxiliary power
• Kubota D1105 18 kW 2600 rpm diesel engine
• Hydraulic oil radiator
• Anti-restart engine protection
• Anti-reverse engine device
• Auto engine fault shutdown

BT22CRT2
