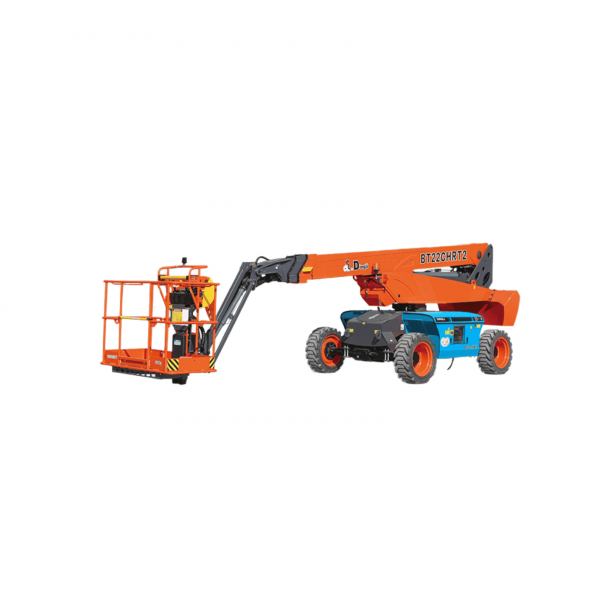

Dingli BT22CHRT2 | Hybrid Telescopic Boom Lift with 22.22 m working height and 320 kg safe working load

BT22CHRT2 – D Series

The BT22CHRT2 from the D Series has been developed by DINGLI’s domestic R&D Center. It features a modular design both horizontally and vertically, with 85% of components shared across the entire range. The machine is equipped with an integrated axle, four-wheel drive, and two-wheel steering. Its downward component layout lowers the center of gravity, resulting in a lightweight, energy-efficient, and more stable design. The platform can be driven at full height while carrying a substantial load of up to 320 kg. It is suitable for transportation in standard containers and can optionally be equipped with high-capacity 48V 280Ah lithium battery packs, along with a universal range extender that charges the battery when no external power supply is available.

FEATURES:

• 1.50 m (4 ft 11 in) jib
• Front oscillating axle
• Two-wheel steering
• Four-wheel drive
• Self-leveling platform
• 180° left and right swing platform
• Proportional joystick controls
• Thumb rocker steering control
• Drive enable system
• AC power supply to platform
• Tilt alarm
• Descent alarm
• Warning beacon
• Horn
• Hour meter
• Integral special integrated drive axle for construction machinery
• 360° continuous turntable rotation
• Positive traction four-wheel drive
• Platform load sensing system
• Fault diagnosis system
• Operator anti-crushing protection system
• Harsh environment operation kits
• 12V DC auxiliary power supply
• 48V / 300Ah battery
• Driving motor: 9 kW at 4834 rpm
• Lifting motor: 13 kW at 1855 rpm
