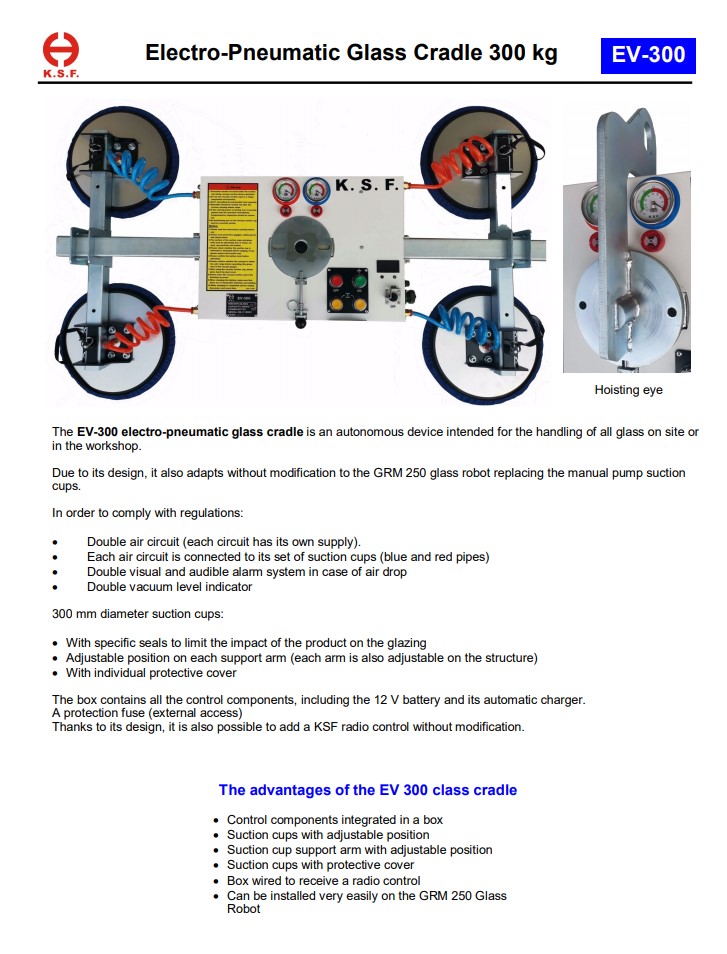

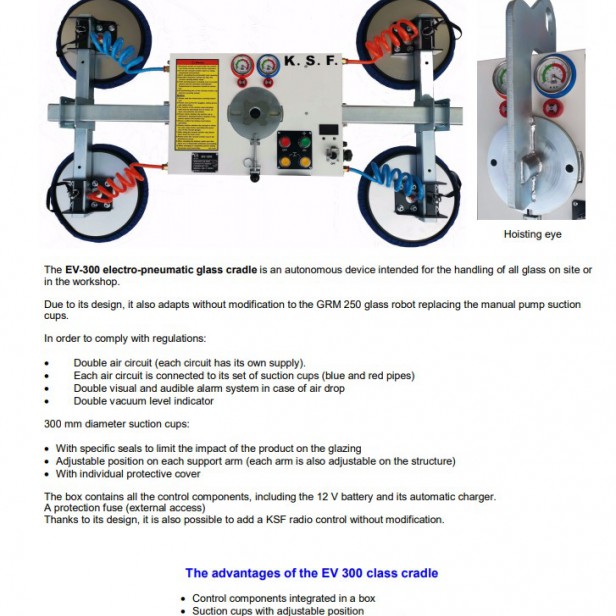

KSF EV‑300 | Electro‑Pneumatic Glass Cradle with lifthing capacity up to 300 kg – Compatible with GRM 250

The EV-300 electro-pneumatic glass cradle is an autonomous device intended for the handling of all glass on site or in the workshop.

• High quality construction with the reliability of KSF products this suction cup can handle even the most demanding jobs.
• It is operated with 2 different buttons which operate the two diagonal suction cups red tubes and blue tubes.
• Due to its design, it also adapts without modification to the GRM 250 glass robot replacing the manual pump suction cups.

The advantages of the EV 300 class cradle

• Control components integrated in a box

• Suction cups with adjustable position

• Suction cup support arm with adjustable position

• Suction cups with protective cover

• Box wired to receive a radio control

• Can be installed very easily on the GRM 250 & the GRE 485 Glass Robots

        TECHNICAL SPECIFICATIONS

In οrder to comply with regulations:

• Double air circuit (each circuit has its own supply).
• Each air circuit is connected to its set of suction cups (blue and red pipes)
• Double visual and audible alarm system in case of airdrop
• Double vacuum level indicator

300 mm diameter suction cups:

• With specific seals to limit the impact of the product on the glazing
• Adjustable position on each support arm (each arm is also adjustable on the structure)
• With individual protective cover
