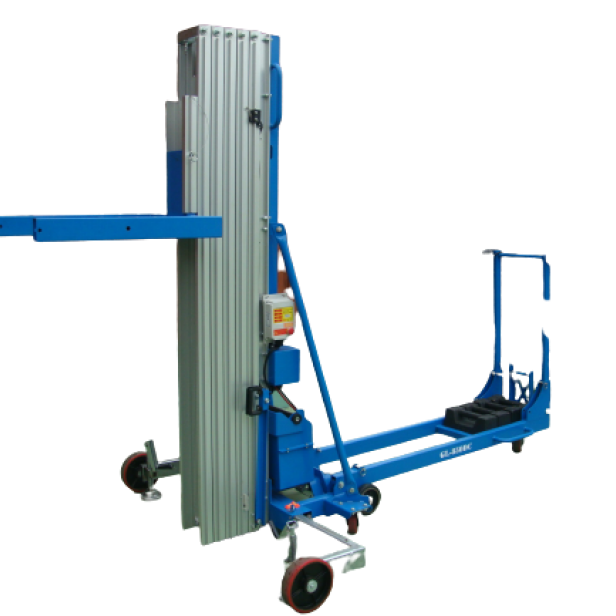

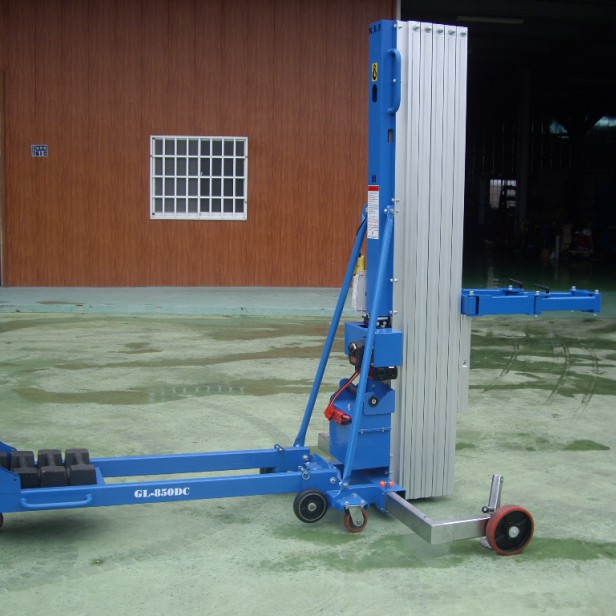

KSF GL850 AC – AC/DC | Electric Glass Lifter with lifting capacity up to 8.7 m – 300 kg

Electric glass lifter for vertical and overhead glazings. It is also an autonomous device supplied by a battery and with its equipment also a multi-purpose material lift for construction site or workshop.

• Quick folding base, set up in 10 seconds without tools, easy and convenient
• Very strong and compact construction
• Heavy duty casters wheels to moving in job site
• Two lifting screws for use in uneven ground. It can also be set up under slope
• Mast provided with a double anti fall system
• Steel casing on the first mast
• Steel pulleys with upper ring
• Lifting eye for crane transport
• High resistance lifting steel cable
• Easy to carry for horizontal or vertical transport

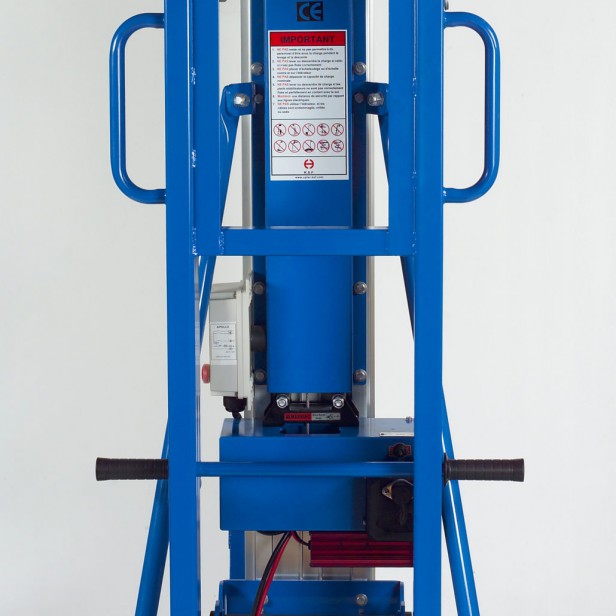

Electrical operating

•  Control with emergency stop or control box
• Electric winch 12 V with automatic brake
• Winch supply by a high performance maintenance free battery and an Integrated battery charger
• For complete safety winch and battery are integrated in a steel casing

Control

• Versatile control of the selection of the user by Industrial radio remote. Other models on request
• With manual winch – Load capacity up to 400 kg
• With pneumatic motor 6 bar

Comes with:

GL – U Universal Crane arm (patented) with universal swivel design

• Retractable and foldable, available carry out installation
• Works around 300 ~ 600 mm scope
• Load capacity 300 kg
• Weight 18 kg

GL 4 V Universal cradle for roof and front glazing

• · Load capacity 180 kg
• · With 4 vacuum suction cups
• design with 360° rotation, available fixed at any position
• · No limit to a height space overhead
• · Dimensions 1460 x 454 mm
• · Weight 27 kg

GL – 4 V – MR Hanging crane for front glazing

• · Load capacity 260 kg
• · With 4 vacuum suction cups on
• flexible angle control
• · Easy to lift the glass from the floor or from a wall
• · Dimensions 1450 x 537 mm
• · Weight 18 kg

 FORK

• · Load capacity 300 kg
• · To lift construction parts
• · Weight 14 kg
• · Dimensions 600 x 700 mm
• · Option support for steel beam

HK

• · Load hook in combination with the universal cradle

Technical specifications

• Load capacity     kg           300
• Lifting height      m            8.7
• Basic height        m            2.15
• Weight kg           268
• Counterweight (4 x 22,5 kg)        kg           90
• Length – Width (folded)               mm        900×760
• Length – Width (operating)         mm        2220×1510
