Elevah e5 Es Move

Self-propelled platform with electric elevation and extensible basket of 60 cm.

• MAX. WORKING HEIGHT: 4,9 m
• EXTENSIBLE BASKET: lengthens of 60 cm
• MANEUVERABLE: Turning radius – 0
• MAX. CAPACITY: 150 kg (1 Person
• COMFORTABLE: practical and safe access to the platform DOORS LOCK: it avoids accidental opening of the basket
• SPEED CONTROL: speed limiter with the basket on the ground
• INCLINOMETER: anti-tilt system
• DETECTORS: 3 acoustic and light presence indicators

ELECTRONIC CONTROL OF BASKET EXTENSION

AUTOMATIC ELECTRONIC PARKING BRAKE

EMERGENCY DESCENT

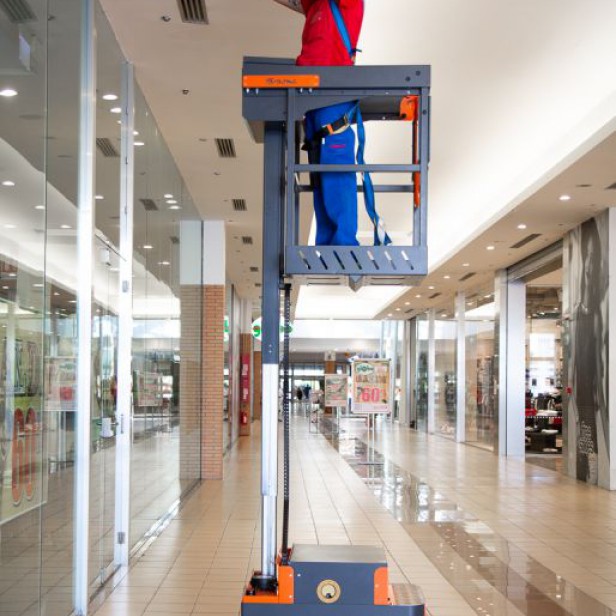

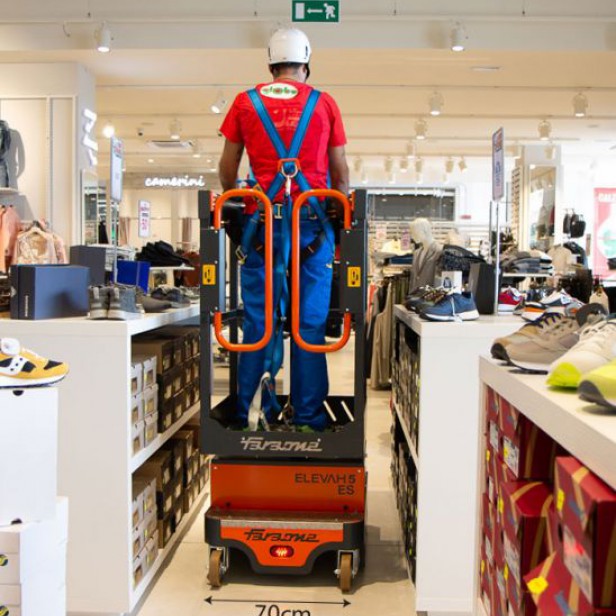

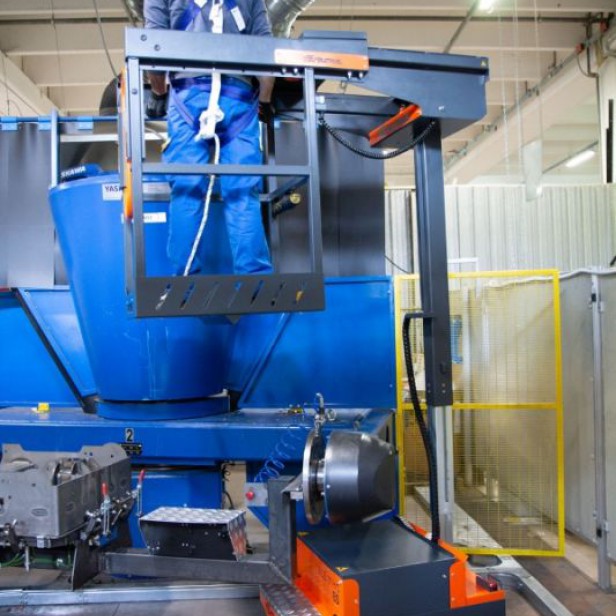

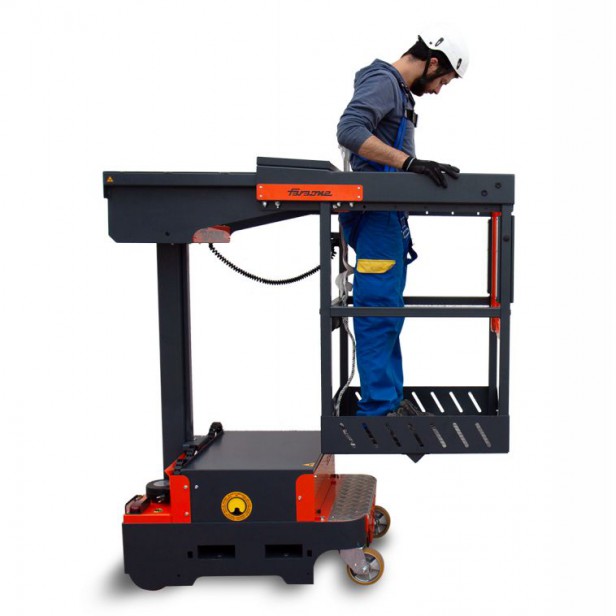

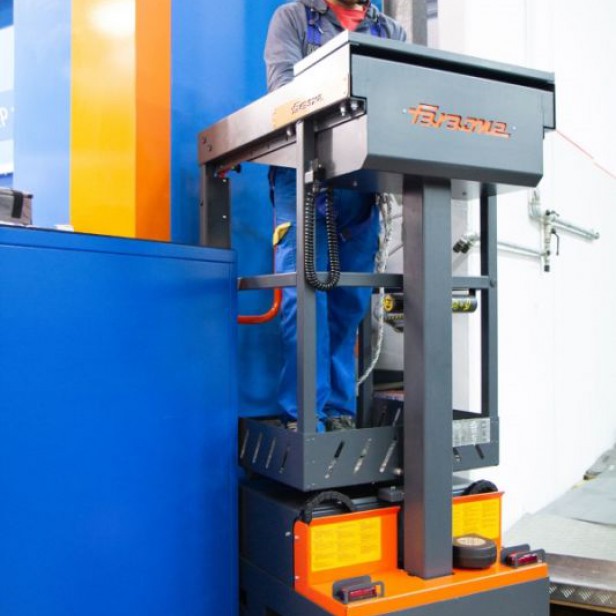

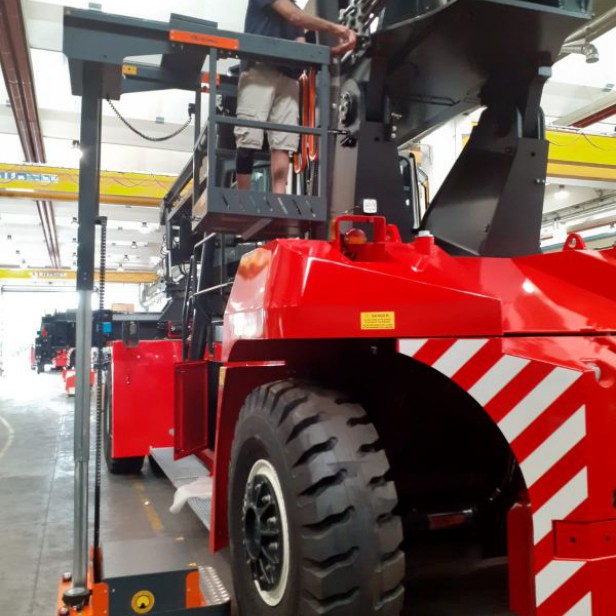

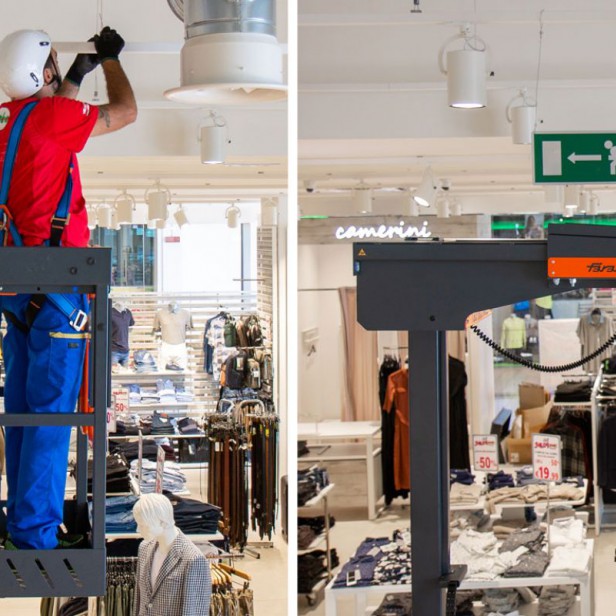

• Elevah 5 ES Move is a compact platform, ideal for maintenance inside stores, malls and industries. The basket manually extends up to 60 cm, allowing maintenance to be carried out in places where there are low or hard- level obstacles to overcome, such as working machines like CNC.

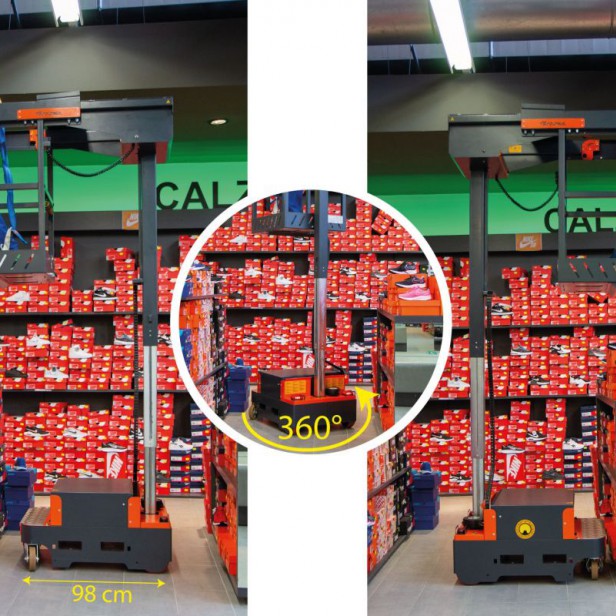

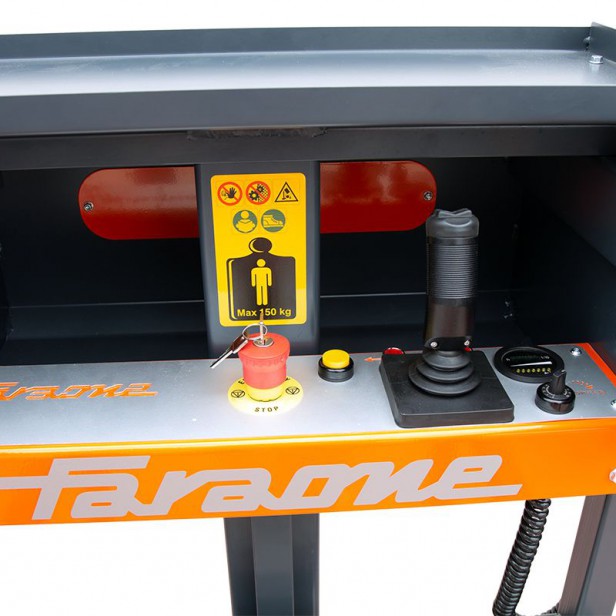

• Elevah 5 ES Move is characterised by its ease of maneuverability: it can be driven with one hand using the convenient joystick, it turns a full 360° thanks to its zero turning radius and it can move even in the narrowest spaces.

• Elevah 5 ES Move is self-propelled in height, so it can be driven without having to lower the basket, saving time in operations.

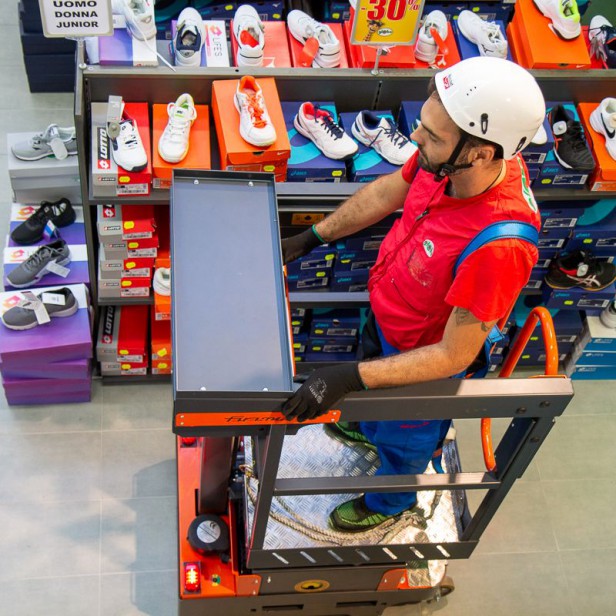

• The basket has a comfortable and safe access and it allows the operator to work at height portected on all sides, minimising the risk of injury.

In the equipment and accessories section, you fill find the list of standard components and accessories to customize Elevah E5 ES Move and adapt it to your needs.

• FRONT, REAR AND CEILING ANTI-COLLISION RADAR
• BLUESPOT1 AND BLUESPOT2 (driving directions signalling light)
• ANTI-CRUSHING PROTECTION UNDER THE BASKET

MORE OPTIONAL

• DIFFERENT COLORING OF MACHINE UPON REQUEST
• DIRECTIONAL LOCKING OF SWIVELS WHEELS
• TRUCK LOADING AND UNLOADING SYSTEM
• Standard charger with retractable cable (Not included if BKIT option is selected).

The machine can work at temperatures between -15° C and +40 °C

• Max. working height 4,9 m
• Max capacity 150 kg
• Number of people 1
• Use Internal

A Closed machine height 1730 mm

B Minimum platform height 289 mm

C Maximum platform height 2916 mm

D Base overall dimensions 980 mm

E 700 mm

G Cage dimensions 1000 mm

F 690 mm

• Machine weight 720 kg
• Drive wheels dimension Ø 186 x 60 mm
• Swivel wheels dimensions Ø 150 x 40 mm
• Adjustment/extraction Manual
• J Stroke 600 mm
• Minimum extension 1000 mm
• Maximum extension 1600 mm
• Power supply 24 V
• Batteries 2 Trojan Lead-Acid 12V 105 Ah
• Battery charger 115V – 230V 50/60HZ
• M Maximum climbing ability 15%
• Climbing ability at height 2,5%
• Internal turning radius 0
• External turning radius 1080 mm
• Max. speed (rising – descending) 0,2 m/s
• Maximum shifting speed 5,5 km/h
• Maximum shifting speed at height 1 km/h
• N Maximum pressure for wheel at full load** 3 kN

Work cycles (with fresh batteries) *** 100

* There is an intermediate step.

** Maximum pressure whereas the weight of the platform plus the maximum load on the basket are completely distributed on one side of the platform (totally asymmetric load).

*** By work cycle we mean a self-propelled movement of 20 m with a full ascent to and descent from the maximum height and with adjustment of the loading platform.

Compliant with EN280 rule.

Approved for indoor use or outdoor use in the absence of wind.

accessories

• ARACO50 Two Upholstered Covers 50 cm
• REDLIGHTS RED LIGHTS - Pair of red lateral signaling lights
• PCC Current socket on the basket. 24 V/5 A
• E5RLA ( l.880 ) Side rollers wide 880 mm, to drive through shelf aisles
• E5PALLET Unloading system of the machine from truck platform without forklift
• E5RLB ( l.980 ) Side rollers wide 980 mm, to drive through shelf aisles
• E5RLC ( l.1020 ) Side rollers wide 1020 mm, to drive through shelf aisles
• E5 COV Resistant tarpaulin
• CL Wooden Crate for shipping
• PCCUSB Socket on board basket with USB socket
• RAL1 Customised machine finish painting
• RAL2 Custom painting of the machine base
• E5RADAR1B Rear Anti-collision Radar System for the Chassis
• BLUESPOT1 Front signalling light
• BLUESPOT1P Pair of signaling lights (front + rear)
• BLUESPOT2 Pair of signaling lights (front + rear)
• 51 KEY Machine start-up with code (only for 24 Volt version)
• E5RADAR1 Frontal Anti-collision Radar System for the Chassis
• E5RADAR3 Anti-collision Radar System to the Top (Driver’s Head protection)
• BG Batteries without maintenance Trojan mod. 31 AGM 100 Ah (1 Kit)
• LITIO 4 Kit with 2 Trojan 12.8 Volt 110 A lithium batteries + increased battery charger. minimum operating temperature 4 °
• E5 ZI.VE Elevah 5 ZI.VE
• PEVA5 External protection for the Basket for E65/E80 MOVE with the option 'Double side entrance basket'.
• E5 EAN-PR Crushing protection under the basket
• E5BLMA Directional electric block that can be activated at height, and double steering wheels with anti-crushing protection.
• KEY ACC KEY ACC
• 51 IN Additional control button to operate the machine with both hands
• IP65 IP65 Certification. Requires AGM batteries
• SCP Extra remote control for loading on ramps
• E5 GREEN E5 GREEN
• E5 WHITE E5 WHITE
• TA 16 Cushioning Pad in EVA
• E5 SCR Loading system for ramps
