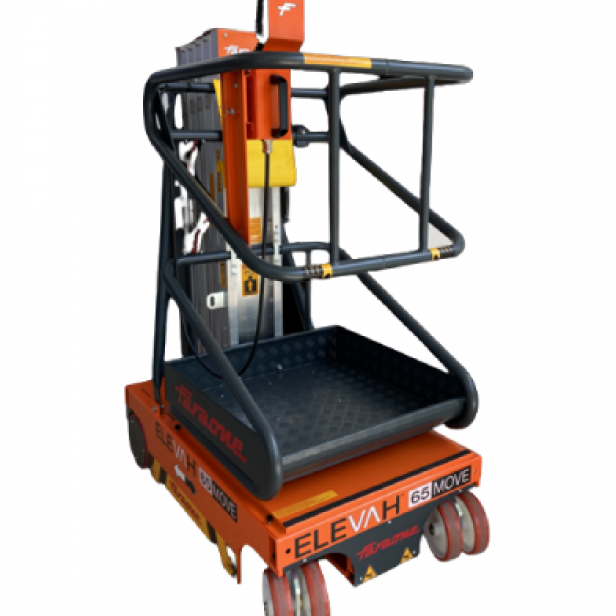

Elevah 65 Move light

Self-propelled, electrically elevated platform with low weight (only 538Kg).

• MAX. WORKING HEIGHT: 6,3 m
• IT WEIGHS only 538 kg
• COMPACT: only 78x128 cm
• MAX. CAPACITY: 150 kg (1 person)
• MANEUVERABLE: Turning radius = 0
• COMFORTABLE: easy and safe access to the footboard DOOR LOCK: it avoids accidental openings of the basket
• INCLINOMETER: anti-tilt system
• DETECTORS: N°3 presence detectors
• SPEED CONTROL: speed limiter in height

EMERGENCY DESCENT

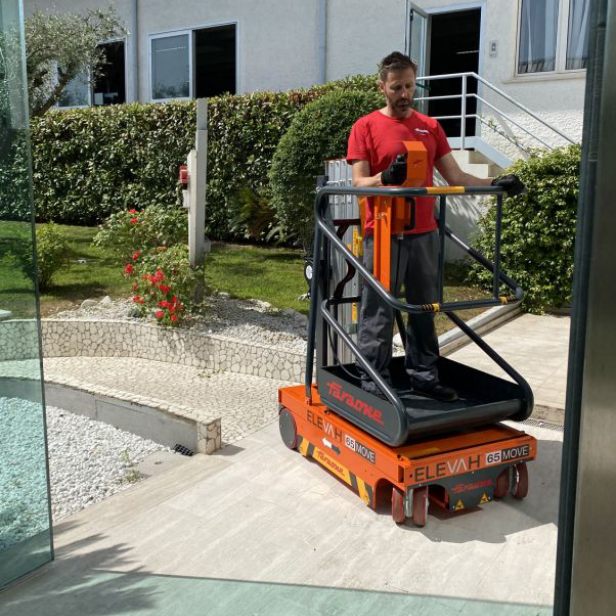

• Elevah 65 Move Light is the self-propelled platform with electric elevation that allows to reach up to 6.3 m working height, extremely compact and light in weight (only 538 kg). Ideal for the maintenance of theatres, museums, sports halls, conferences halls and all places with delicate or low load-bearing floors.

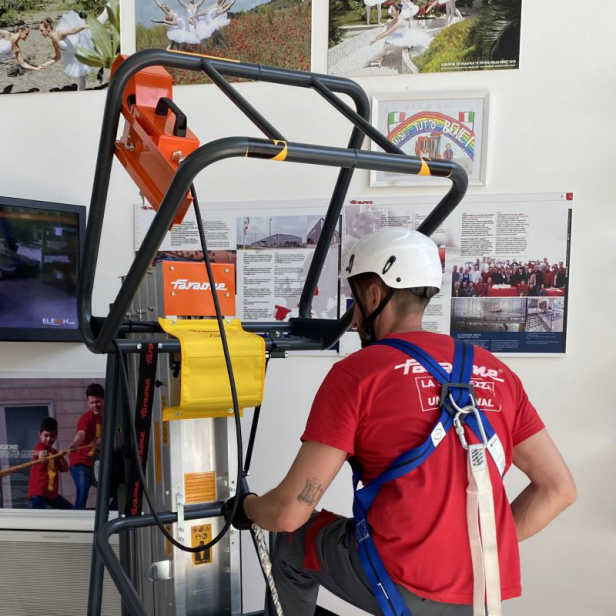

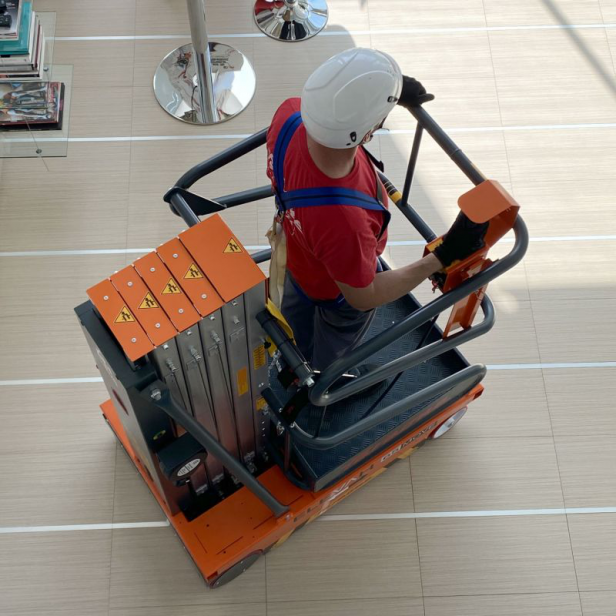

• The basket has a comfortable and safe access and it allows the operator to work at height protected on all sides, minimising the risk of injury and optimizing time.

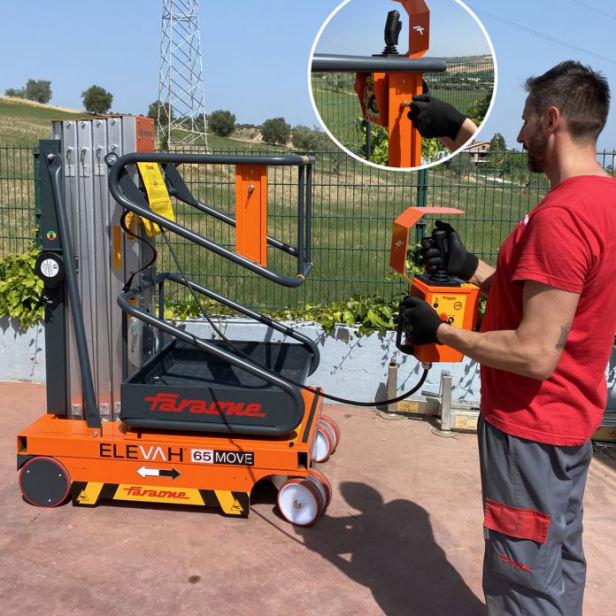

• Easy to maneuver thanks to the convenient joystick and the zero turning radius allows you to move easily even in the narrowest places.

The platform can be easily loaded onto a van by remote control and easily transported.

In the equipment and accessories section, you fill find the list of standard components and accessories to customize Elevah 65Move Light and adapt it to your needs.

ANTI-COLLISION RADAR

BLUESPOT M(driving directions signalling light)

ANTI-CRUSHING PROTECTION UNDER THE BASKET

MORE OPTIONAL

MANUAL DIRECTIONAL LOCK

TRUCK LOADING

Standard charger with retractable cable (Not included if BKIT option is selected).

The machine can work at temperatures between -15° C and +40 °C

The machine can work at temperatures between -15° C and +40 °C

• Max. working height 6,3 m
• Max capacity 150 kg
• Number of people 1
• Use Internal

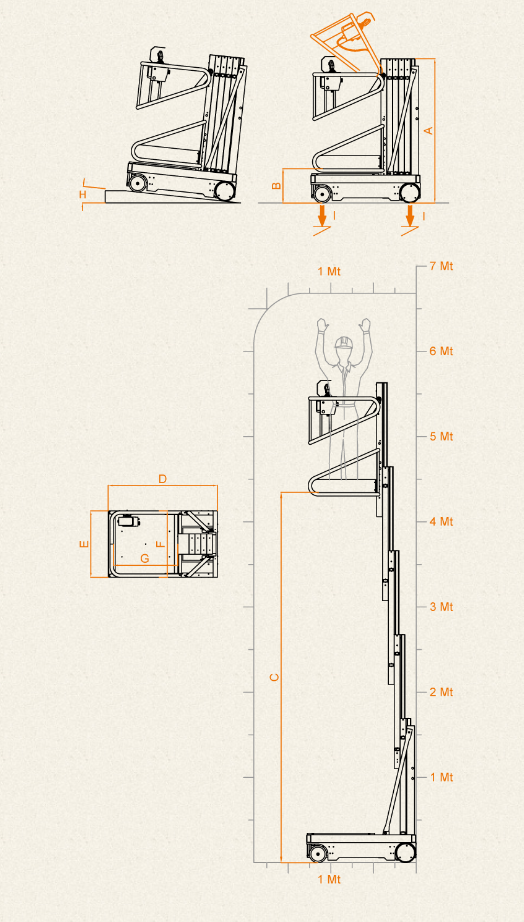

A Closed machine height 1700 mm

B Minimum platform height 400 mm

C Maximum platform height 4345 mm

D Base overall dimensions 1280 mm

E 780 mm

F Cage dimensions 770 mm

G 790 mm

• Machine weight 538 kg
• Power supply 24 V
• Batteries Lead-Acid Batteries 12V 105 Ah
• Battery charger 110V – 220V
• Climbing ability at height 2,5 %
• H Maximum climbing ability 15 %
• Drive wheels dimension Ø 230 x 60 mm
• Swivel wheels dimensions Ø 200 x 50 mm
• Internal turning radius 0
• External turning radius 1095 mm
• Max. speed (rising – descending) 0,2 m/s
• Maximum shifting speed (on the ground - at height) 4 km/h - 1km/h
• I Maximum pressure for wheel at full load* 1,9 kN

Work cycles (with fresh batteries)** 130

* Maximum pressure whereas the weight of the platform plus the maximum load on the basket are completely distributed on one side of the platform (totally asymmetric load).

** By work cycle we mean a self-propelled movement of 20 m with a full ascent to and descent from the maximum height and with adjustment of the loading platform.

Compliant with EN280 rule.

Approved for indoor use or outdoor use in the absence of wind.

• REDLIGHTS RED LIGHTS - Pair of red lateral signaling lights
• PARACO32 Two Upholstered Covers 50 cm
• PCC Current socket on the basket. 24 V/5 A
• CL Wooden Crate for shipping
• IP65.MOVE IP65 Certification. Requires AGM batteries
• PCCUSB Socket on board basket with USB socket
• 65 RADAR 1B Rear Anti-collision Radar System for the Chassis
• ZNC Galvanized machine plus epoxy powder coated
• 51 KEY Machine start-up with code (only for 24 Volt version)
• 65 RADAR 1 Frontal Anti-collision Radar System for the Chassis
• 65 RADAR 2 Frontal Anti-collision Radar System for the Basket
• 65 RADAR 3 Anti-collision Radar System to the Top (Driver’s Head protection)
• 65 BKIT Kit with 2 batteries for 24H operation
• BG Batteries without maintenance Trojan mod. 31 AGM 100 Ah (1 Kit)
• LITIO 4 Kit with 2 Trojan 12.8 Volt 110 A lithium batteries + increased battery charger. minimum operating temperature 4 °
• PEVA3 External protection for the Basket for E65/E80 MOVE with the option 'Double side entrance basket'.
• 65 AN-PR Crushing protection under the basket
• BLUE SPOT M Frontal BLUE SPOT
• E65BLMA Directional block
• 51 IN Additional control button to operate the machine with both hands
• 65 ZA Ballast for slippery floors (100 kg)
• 65 COV Resistant tarpaulin
• 65 SCR Loading system for ramps
• SC Speed controller
• CEST 2A Double side entrance basket. With this accessory the machine weighs about 100kg more
• TA 7 Cushioning Pad in EVA
