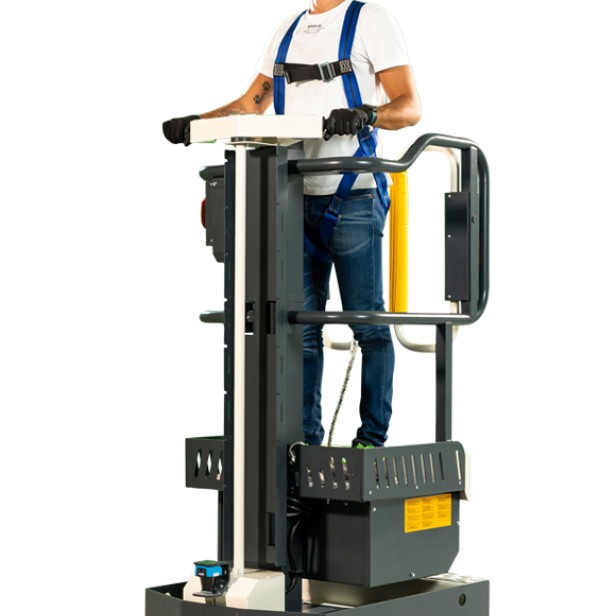

SELF-PROPELLED ELECTRIC PLATFORM ELEVAH 40 MOVE WORKING HEIGHT 4M

ELEVAH40 Move

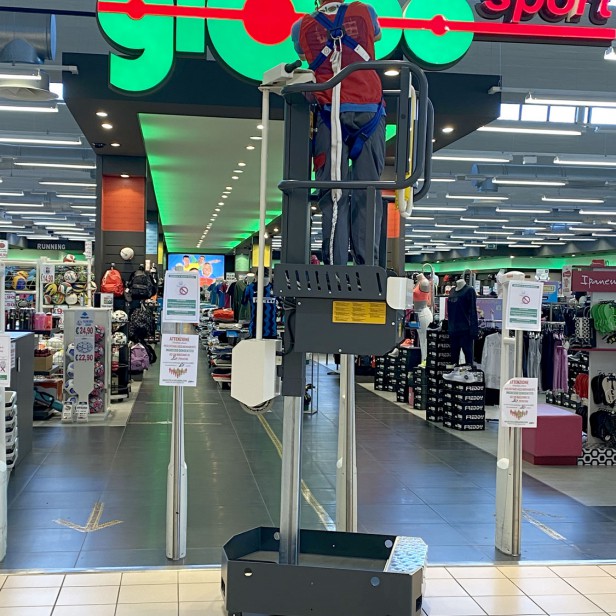

• Manageable and efficient, the Elevah 40 Move is the ultra-compact self-propelled platform that allows you to work at a maximum height of 4 metres. Perfect for increasing safety levels and optimising time. It is ideal for carrying out maintenance tasks in various environments, from shops to industry.

• Thanks to its small size (only 71.5 x 100 cm), this model is very practical and can be stored in a small space. The practical control handle facilitates manoeuvring, even in the narrowest spaces, making it easy to move from one area to another, remaining in the basket.

• The Elevah 40 Move offers numerous advantages in terms of work optimisation, but also in terms of work safety. Thanks to the door lock, the basket cannot be opened accidentally. This is a real guarantee of safety for the operator who can work in calm. This is a real guarantee of safety for the operator who can work in peace. In addition, to prevent unintentional activation, the handlebar is equipped with a safety device. To facilitate operations, it is equipped with an electronic and automatic parking brake.In addition, it is equipped with integrated control systems and light signal of movement.

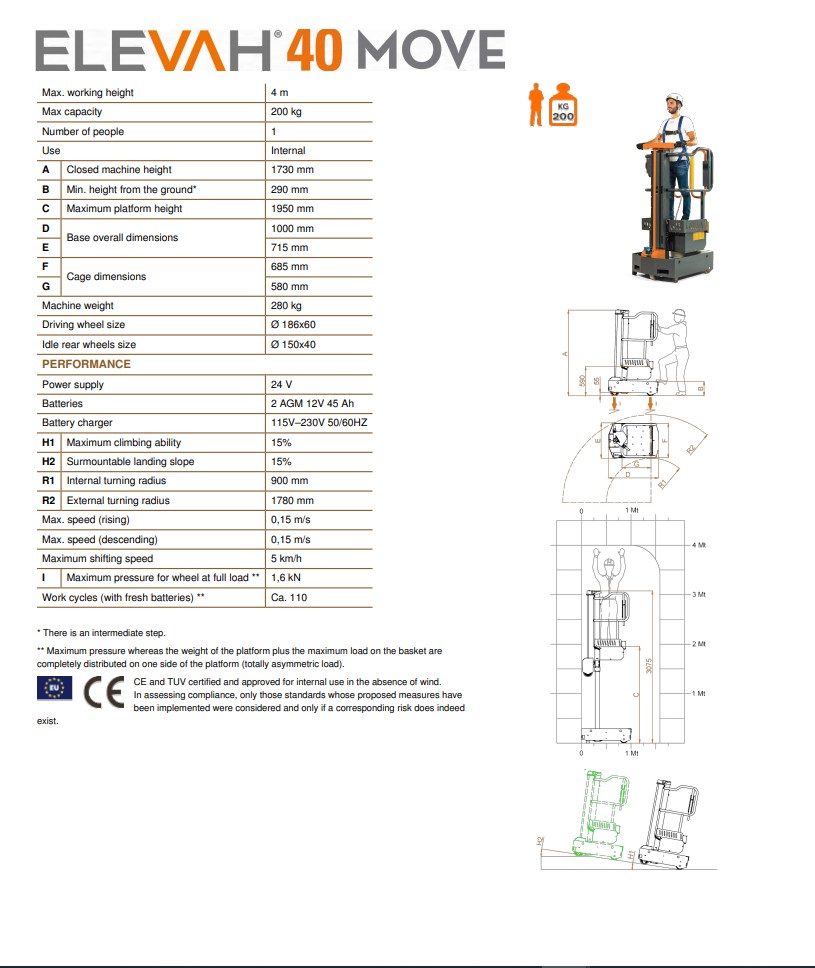

• Max. working height 4 m
• Max capacity 200 kg
• Number of people 1
• Use Internal

A Closed machine height 1730 mm

B Min. height from the ground* 290   mm

C Maximum platform height 1950 mm

D Base overall dimensions 1000 mm

E 715 mm

F Cage dimensions 685 mm

G 580 mm

• Machine weight 280 kg
• Driving wheel size Ø 186x60
• Idle rear wheels size Ø 150x40

PERFORMANCE

• Power supply 24 V
• Batteries 2 AGM 12V 45 Ah
• Battery charger 115V–230V 50/60HZ
• H1 Maximum climbing ability 15%
• H2 Surmountable landing slope 15%
• R1 Internal turning radius 900 mm
• R2 External turning radius 1780 mm
• Max. speed (rising) 0,15 m/s
• Max. speed (descending) 0,15 m/s
• Maximum shifting speed 5 km/h
• I Maximum pressure for wheel at full load ** 1,6 kN

* There is an intermediate step.

** Maximum pressure whereas the weight of the platform plus the maximum load on the basket are completely distributed on one side of the platform (totally asymmetric load).

CE and TUV certified and approved for internal use in the absence of wind.

In assessing compliance, only those standards whose proposed measures have been implemented were considered and only if a corresponding risk does indeed exist.

Safety equipment

Standard

• Maximum capacity control via relief valve
• Light movement indicator
• Automatic electronic parking brake
• Horn
• 2-sash access doors to basket with closure control
• Joystick with safety catch against accidental activation
• IP65 protected drive wheels
• Manually activated emergency descent of the basket to base
• Two-hand operation

Optional

• REDLIGHT1 REDLIGHT1 - Pair of red lateral signaling lights
•
  E40RADAR1 Frontal Anti-collision Radar System for the Chassis
• E40RADAR1B Rear Anti-collision Radar System for the Chassis
• E40RADAR3 Anti-collision Radar System to the Top (Driver’s Head protection)
• E5 PO Protection for the operator’s head above the cage. Made of steel, it protects the operator should small objects fall from above
•
  BLUESPOT1 Front signalling light
• BLUESPOT1P Pair of signaling lights (front + rear)
• BLUESPOT2 Pair of signaling lights (front + rear)
• E40 AN-PR Crushing protection under the basket
•  51 KEY Machine start-up with code (only for 24 Volt version)
• 40 KEY ACC Configurable machine height block
• IP65 IP65 Certification. Requires AGM batteries
• Ergonomics and functionality equipment

Optional

• PARACO50 Two Upholstered Covers 50 cm
• PCC Current socket on the basket. 24 V/5 A
• E40PALLET Unloading system of the machine from truck platform without forklift
• E5RLB ( l.980 ) Side rollers wide 980 mm, to drive through shelf aisles
• E5RLC ( l.1020 ) Side rollers wide 1020 mm, to drive through shelf aisles
• 40COV Resistant tarpaulin
• CL Wooden Crate for shipping
• PCCUSB Socket on board basket with USB socket
• E40 CR Additional machine up and down control only for loading-unloading on van
• E5RLA ( l.880 ) Side rollers wide 880 mm, to drive through shelf aisles
• E40ASP Removable objects holder platform, 40 kg capacity
• TA 15 Cushioning Pad in EVA
• E40 SCR Loading system for ramps. It can only be used with the addition of the controls at the base of the machine: also select the E40CR accessory
• E40 ZI.VE Elevah 40 galvanised and then painted, it guarantees higher resistance to atmospheric agents
• E40 GREEN Base painted grey (RAL 7016) with green finishing (RAL 6011)
• E40 WHITE Base painted grey (RAL 7016) with white finishing (RAL 1013)
• RAL1 Customised machine finish painting
• RAL2 Custom painting of the machine base

Electronics, power supply and batteries equipment

Standard

• Proportional type self-propulsion
• Proportional basket lifting
• Proportional basket descent
• Lifting block with 80% batteries
• Hour meter and battery charge indicator on basket
• Multi-voltage and multi-frequency battery charger 6A - 115V - 230V - 50/60Hz.
• High resistance batteries AGM 24V - 50A

Optional

• LITIO 2 Lithium Batteries 12.8V 50Ah
