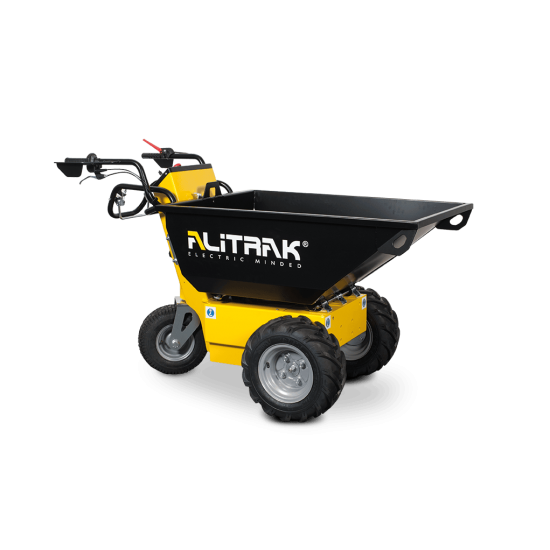

ALITRAK ELECTRICALLY DRIVEN WHEELBRROW MT-500S / MT-500P 400-500KG

The MT-500 is a mini-dumper equipped with three wheels, with a solid steel structure. It is designed with motor, batteries and other component protected to work in construction, demolitions and industry.

It is also useful in agriculture, and in garden building works. The full control with reduced effort of the skip emptying operation is granted by the “Easy tipping lever”. The “Performance” version here described, is suitable for particularly heavy works and is equipped with high load motor axles and hours meter (ideal for rental situations). Anchor points for the machine lifting are included in the standard version.

Specifications

• • • • • Loading capacity on flat surfaces: MT-500 S 400 Kg – MT-500 P 500 Kg
        • Max gradient: 20%
        • Forward speed: fast 5 km/h – slow 2,5 km/h
        • Reverse speed: fast 3 km/h – slow 1,5 km/h
        • Battery recharge: approx. 8 hrs.
        • AGM battery: 2 x 12V/85 Ah C20
        • Electric motor: MT-500 S 24V / 900 Watt DC S1 – MT-500 P 24V / 1200 Watt AC S2 60 min
        • Length: 1680 mm
        • Width: 780 mm
        • Height: 990 mm
        • Weight: 200 kg
        • Dashboard display: MT-500 S Remaining battery charge, equipment failures – MT-500 P Remaining battery charge, equipment failures, hour meter
        • Battery charger: On board 13A high frequency
        • Speed control: hand accelerator
        • Parking brake: Electromagnetic
        • Oil bath differential
