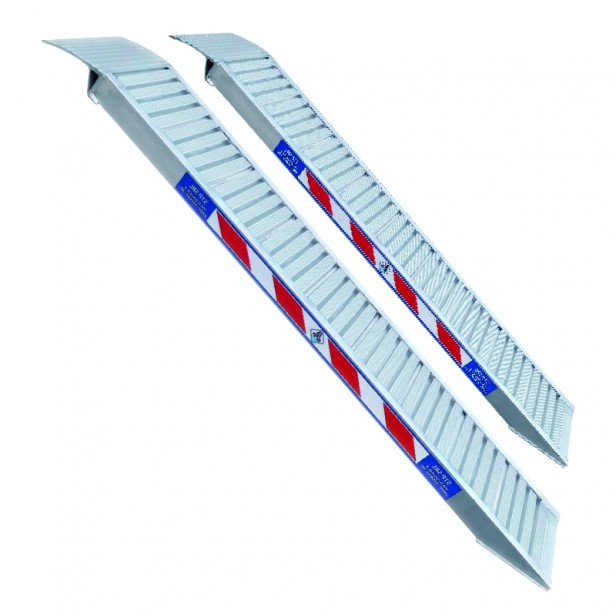

RAMP STP ITALY H85 30Β FOR 1500kg

LOADING RAMPS WITHOUT EDGE

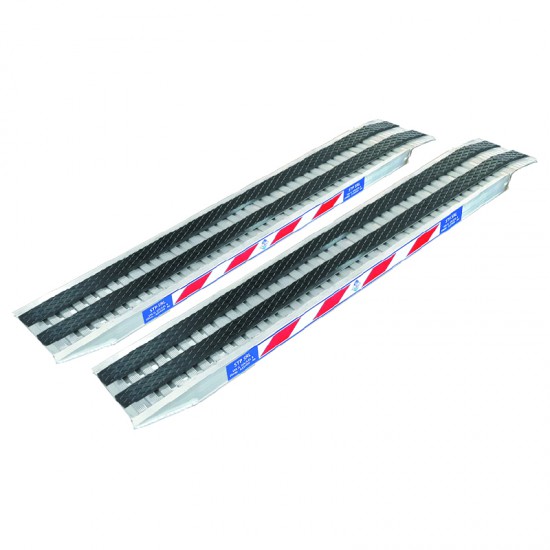

Made of 6005 aluminum alloy with reference to European regulation UNI EN 1093-3 of 2019. Recommended for iron tracked vehicles (with high resistance rubber)

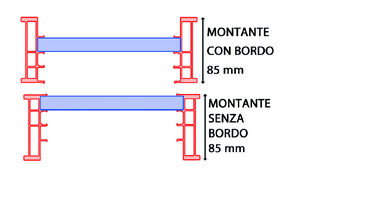

LOADING RAMPS WITH EDGE
Made of 6005 aluminum alloy with reference to the European regulation UNI EN 1093-3 of 2019.
It is forbidden to use tracked vehicles on loading ramps with edge

BEFORE USE

Before using the ramps, check that:
The loading bed on which the ramps will be placed is level;
The wheels of the vehicle on which you will be loading are blocked;
To secure the ramps to the loading floor, use one of the three anchoring systems:
 WITH PIN:
The ramp has a hole on the head, also prepare a hole on the truck bed and anchor the ramp using a pin. (NOT SUPPLIED BY STP).
 WITH CHAIN:
The ramp has a round welded on its rear part, using a chain
(NOT SUPPLIED BY STP) anchor the ramp to the bed.
 WITH TONGUE:
Place one end of the tongue (optional on request) under the head of the ramp and the other in the gap between the lowered side and the bed floor.
