DRAGON DW-Y01C | Folding electric wheelchair for disabled users with load capacity up to 100 kg

The Electric Wheelchair DW‑Y01C is a compact, portable power wheelchair by Dragon Medical, ideal for everyday use both indoors and outdoors.

It's built with a lightweight magnesium‑alloy frame, foldable for easy transport, and supports up to 100 kg load. Powered by dual 24 V ~250 W brush or brushless motors, it achieves a top speed of about 6 km/h and uses a ~12–13 Ah battery with a driving range of 10–15 km. Features include electromagnetic braking, anti‑tilt protection, and a seatbelt. Cushions and various ergonomic supports are available as OEM options.

Features:

• Frame Material: Magnesium‑alloy — lightweight, strong, corrosion‑resistant alternative to steel.

• Weight: Approx. 45 kg net (with battery), gross around 49 kg.

• User Load Capacity: Up to 100 kg.

• Motors: Dual 24 V × ~250 W brush or brushless motors.
• Top Speed: Around 6 km/h.

• Battery & Range: 12–13 Ah battery (lead‑acid or lithium), with 10–15 km range per charge.

• Brake System: Electromagnetic braking for smooth stops.

• Safety: Equipped with seatbelt and anti‑tip protection.

• Control Interface: Intuitive joystick or button controls for easy steering.

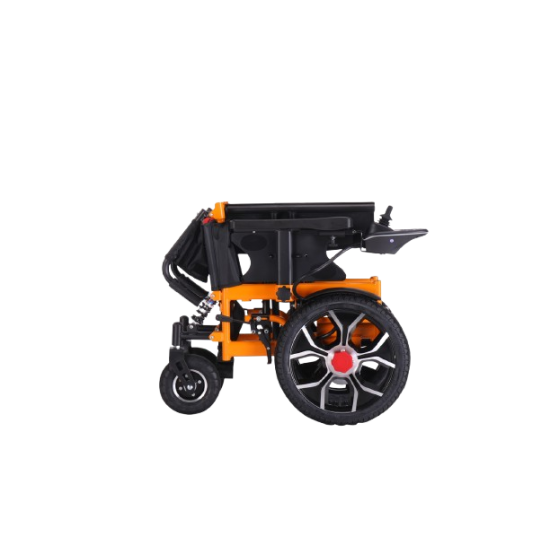

• Foldable / Portable Design: Folds compactly for vehicle transport or storage.

• Optional Accessories: Customizable seat/back cushions, leg rests, headrests; OEM branding available
