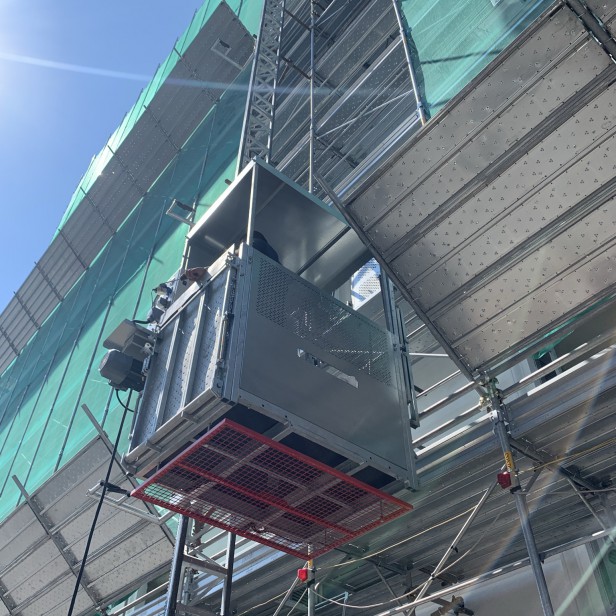

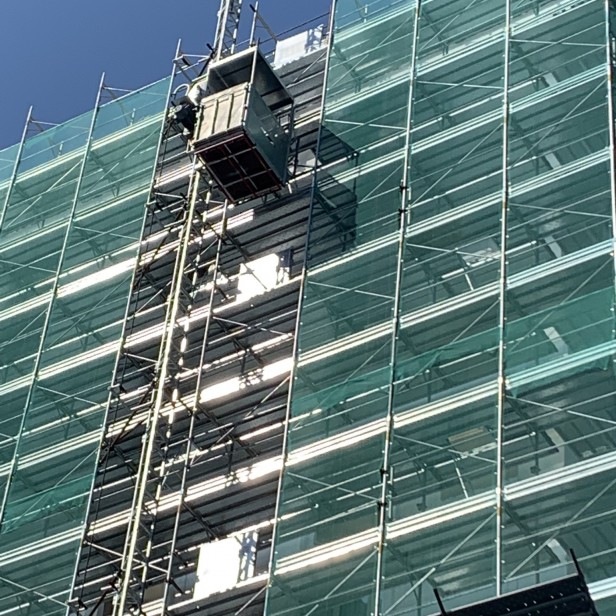

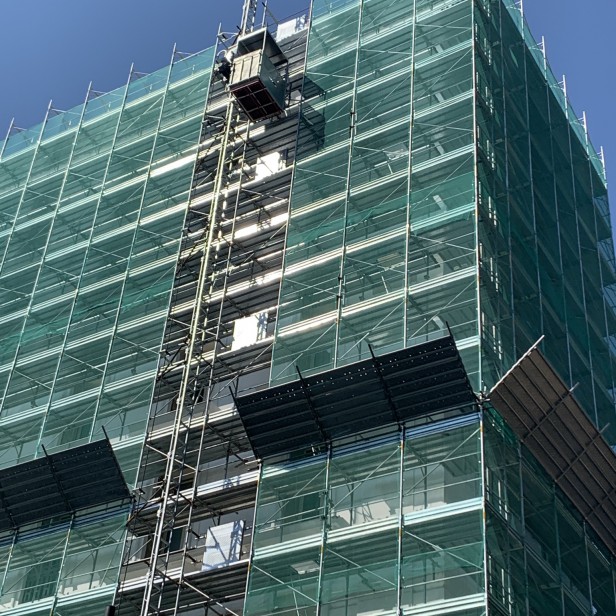

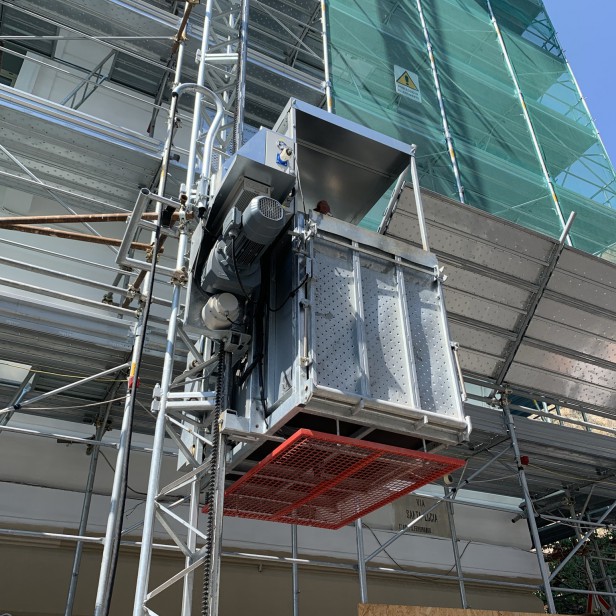

SAECLIMBER - Transport Platform PH5/H5 - 100M 600KG

Transport Platform PH5 Material hoist H5

PH5 is a transport platform for people and materials regulated according to EN 12158 and the new European standard EN 16719. Available at 12 m/min (maximum permissible speed according to regulations), or dual speed version 12/24 m/min with inverter (VFC) for mixed use transport platform/material hoist. Also available as material only hoists with automatic control to the landings. Both versions are also available with single phase power 220 V and 3 Kw of maximum power required. The PH5 transport platform is ideal for use when there is little space available or when there is no three phase power. Another advantage of the PH5 transport platform is its minimum space required for transport with high cost savings. Mast Section is the same of E05 and P08.

ADVANTAGES

Reasons to choose the PH5:

•     Minimum space required for transport with great cost saving.
•     Simple and reliable.
•     Fast in assembly.
•     Ideal for mounting in elevator shafts or in narrow spaces.
•     Single phase power version available.

SAFETY DEVICES

•     Base chassis with certified Rubber shock absorbers
•     Cable basket or cable trolley
•     Overload device (detection by load cells)
•     Ascend & descend limit switch
•     Mast ascend & descend emergency limit switch
•     Mast detection inductive limit switch
•     Power cable anticut limit switch and anti‐tear device, for electric cable protection (avoiding cable rupture)
•     Electromechanical limit switch for cage landing door Inductive for cage boarding door
•     Ladder limit switch
•     Mast and anchorage trapdoor limit switch
•     Landing door mechanical limit switch: Do not open if the cabin is not at the floor
•     Base enclosure access door electromechanical limit switch : Do not open if the cabin is not at the ground
•     Ground enclosure
•     Anti‐over‐run mechanical device
•     First class Self‐braking motor gear
•     External independent parachute  emergency brake (CE certified)
•     Terminal Mast section with half rack to avoid overrun
•     Platform or roof hatch for erection with safety rails and safety limit switch
•     Visual Diagnostic of malfunctioning
•     Device for manual descent in case of power failure
•     Emergency light with battery or Led  (CE) inside Cabin
•     All steel material of the supply, including the cabin, is hot galvanized
•     Magnetothermal protections and differential ampere switchetche
