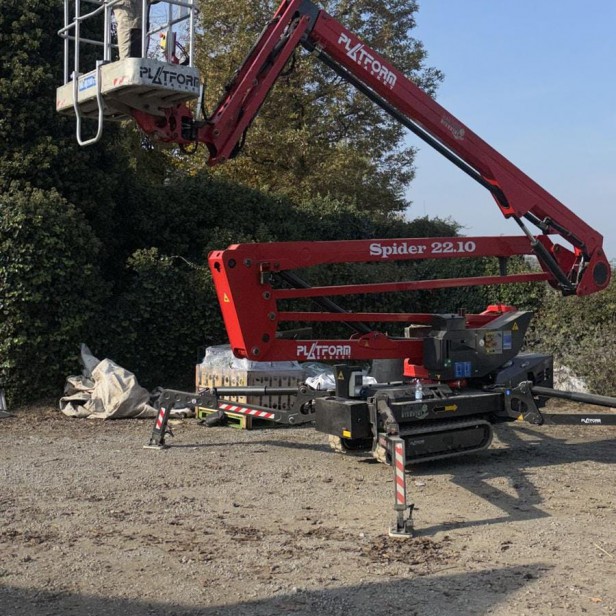

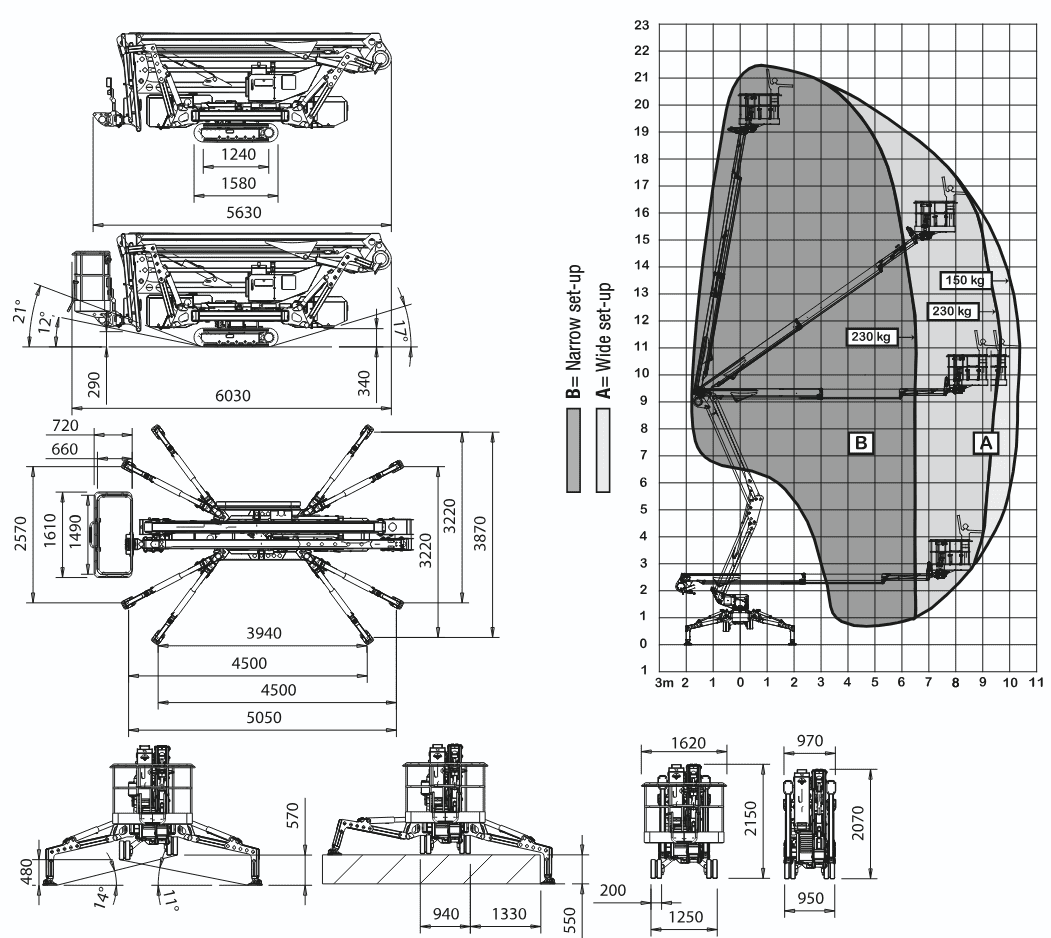

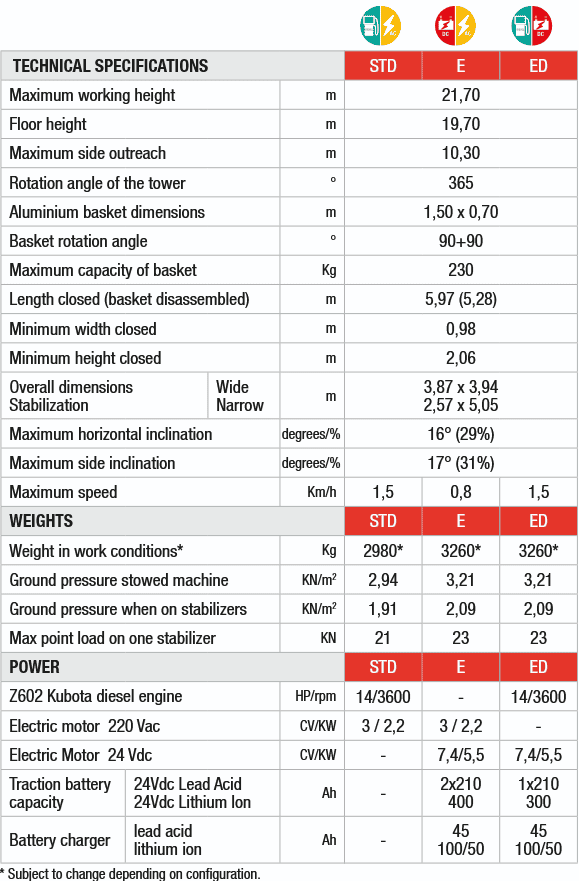

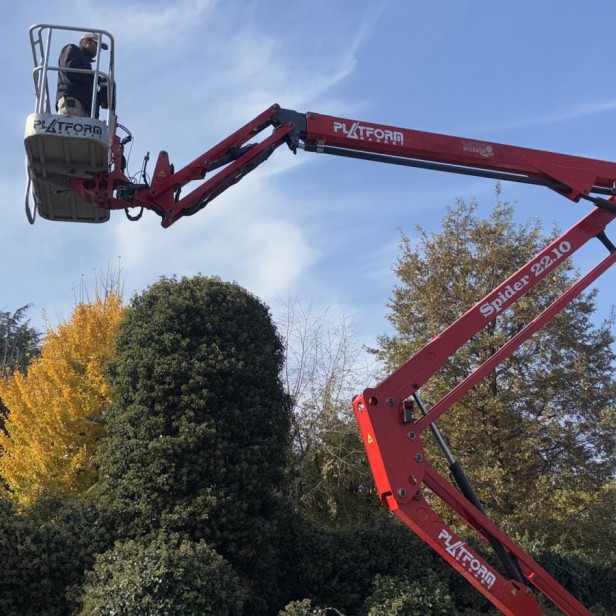

Platform Basket Spider 22.10 (MOD 2013) Tracked Hybrid Spider Lift with 21.70m Working Height, 10.30m Outreach and 230kg Basket Capacity | Available for Rent

Spider 22.10 Diesel engine – Kubota (2013 - 700 working hours)

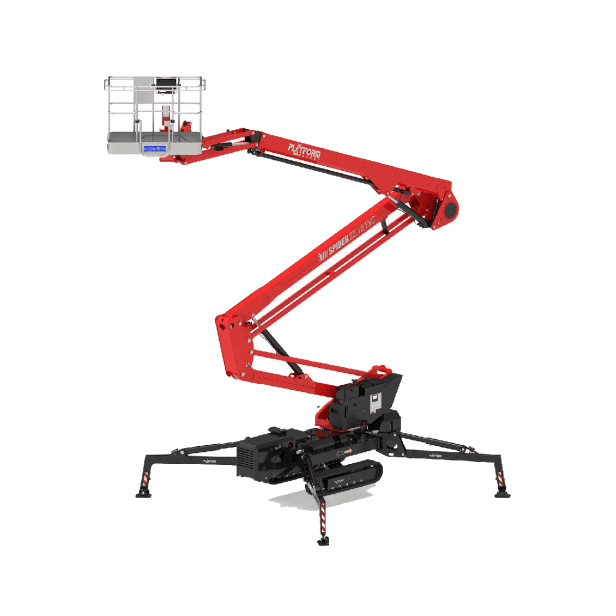

The Spider 22.10 is an ultra-light, easy-to-transport tracked lift. Agile and highly stable, it features a variable-width crawler track undercarriage, basket rotation, and standard radio-controlled proportional and simultaneous commands.

Its articulated structure with jib and double scissor mechanism allows it to overcome obstacles with ease. The model includes automatic outreach control according to stability requirements. Platform Basket designed this lift with no external hoses on the boom sections, increasing operator safety and reducing the risk of damage.

An optional interchangeable winch can be supplied, enabling safe lifting of loads up to 250 kg. Within just a few minutes, the articulated platform can be converted into a hoist. Compact, stable, and extremely versatile, the Spider 22.10 is the ideal choice for construction sites, rental fleets, gardening work, and general indoor and outdoor maintenance.

High-performing and Lightweight

• Ultra-light and easy to transport

• 230 kg basket load capacity

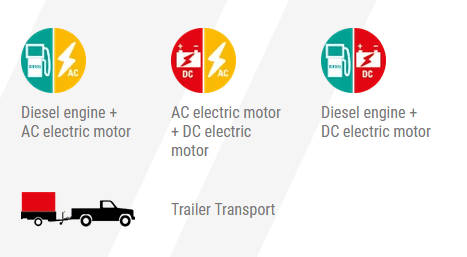

• Electric battery version or HYBRID version available on request

• Easy access to components requiring maintenance

• Simple to use yet highly precise

• Equipped with radio control for undercarriage and aerial movements

• Equipped with automatic stabilisation and de-stabilisation

• Variable stabilisation without restrictions

• In-basket air, water and 220 V power outlets

• Optional lifting winch interchangeable with the basket
