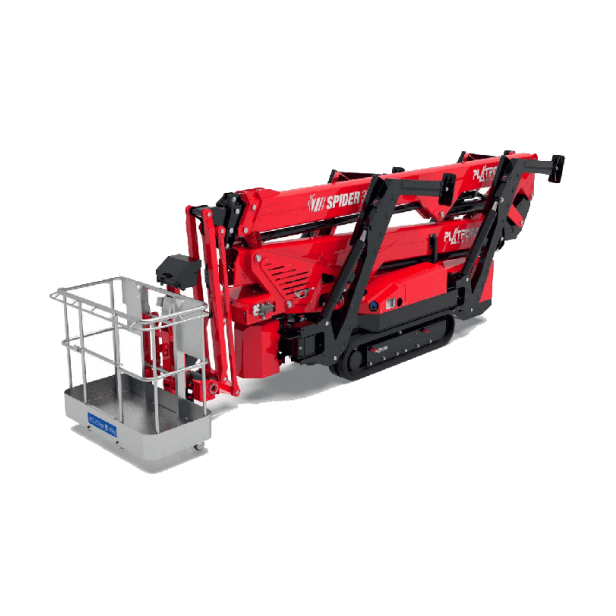

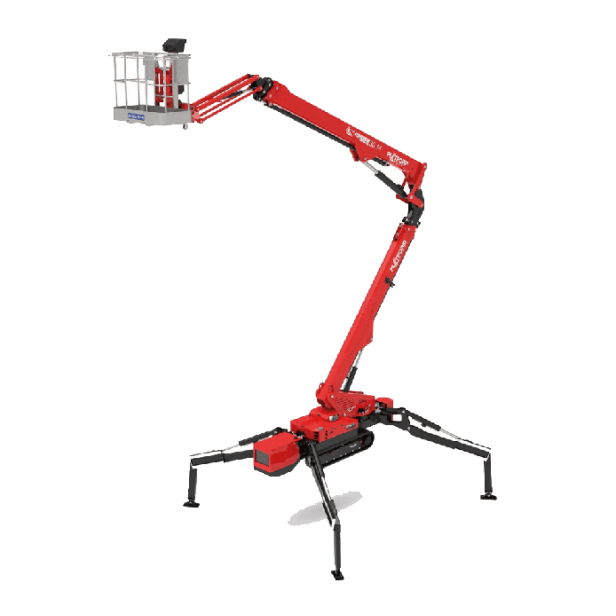

Spider 30.14

The Spider 30.14 is Platform Basket’s new articulated tracked aerial platform, engineered to deliver high performance and maximum versatility at height, all while maintaining compact dimensions. It reaches a maximum working height of 30.4 meters and a lateral outreach of 13.6 meters.

Thanks to careful structural optimization, the machine remains under 4,500 kg, making it ideal for trailer transport and for use in environments where floor load capacity is a critical factor.

Stable, compact and fully configurable, the Spider 30.14 is the perfect choice for construction sites, complex maintenance work, rental fleets, and professional operators in the construction, energy, and arboriculture sectors.

The basket supports a maximum load of 250 kg and is available in various configurations, including insulated and single-operator versions, with ±80° basket rotation and ±200° turret rotation.
The automatic stabilization system offers three configurations (narrow, wide, and extra wide for self-loading), with no restrictions in use.

It is equipped with a Kubota D902 engine, a 48V electric motor, and battery capacities up to 360 Ah.
All movements—both on the chassis and in the air—are fully remote-controlled, using proportional and simultaneous commands for precise and intuitive operation.

Advantages

• Powerful and compact construction

• Articulated tracked platform with jib and double pantograph

• 30.4 m working height and 13.6 m lateral outreach

• Basket capacity up to 250 kg

• Proportional and simultaneous remote-controlled movements

• Basket rotation ±80°, turret rotation ±200°

• Competitive weight under 4.5 tons for easy transport and greater flexibility

• Automatic stabilization with three configurations (narrow, wide, and extra wide for self-loading)

• Available in diesel, electric or hybrid versions

• Optional interchangeable winch for lifting materials

• Anti-collision and anti-intrusion systems in the basket

• Wide range of options: anemometer, intercom, non-marking tracks, biodegradable oil, etc.

Optional Equipment

Like other Platform Basket models, the Spider 30.14 can be equipped with an optional:

• Interchangeable lifting winch for safe handling of materials up to 250 kg
  (transforming the machine into a lifting device within a few minutes)

Additional options include:

• Anti-collision and anti-intrusion basket systems

• Anemometer

• Intercom

• Non-marking tracks

• Biodegradable hydraulic oil

• 230V electric motor

• Remote diagnostics

• Battery charger/maintainer

• Stabilizer plate kit
