ELMA MCR30+ | Tracked Mini Crane for professional lifting with working height up to 9m and lifting capacity up to 2110kg

MCR30+

- The MCR30+ crawler crane is the upgraded version of the MCR30, designed to deliver maximum safety, flexibility, and performance in demanding working environments. It features variable-position outriggers and a lifting moment of 3.2 Tm, providing enhanced stability and high lifting performance. - The crane offers a lifting capacity of up to 2,110 kg and a maximum working height of up to 5 m, ensuring reliable and efficient load handling. The integration of advanced sensor technology ensures high levels of operational safety.
- The pick-and-carry capability of up to 250 kg enhances functionality, while compatibility with attachments, such as glass installation systems, significantly expands its range of applications. Its compact design allows operation in confined spaces and passage through narrow openings.
- The model is available in a petrol engine version with a 230Vac electric pump, as well as a fully electric version powered by 48Vdc with a 110Ah lithium battery.

Advantages
• Variable-position outriggers
• Enhanced safety with advanced sensor technology
• High lifting performance
• Suitable for confined and demanding environments
• Compact design
• Pick-and-carry functionality
• Versatile with multiple attachments
• Available in full-electric version

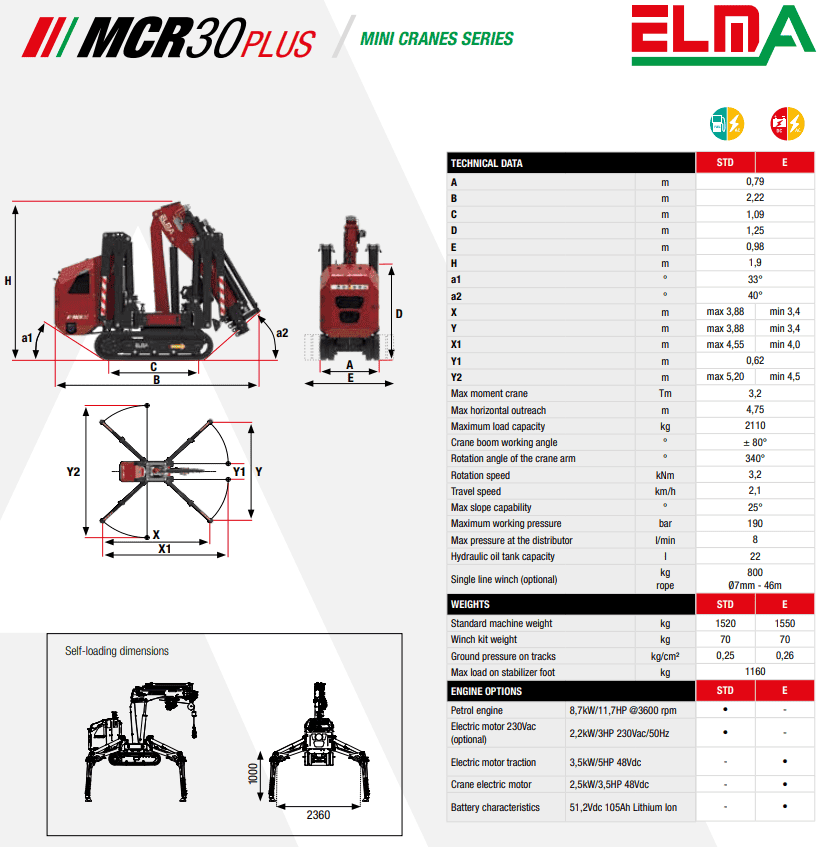

Technical Specification
• Rated moment: 3.2 Tm
• Max working radius: 4.75 m
• Max lifting capacity: 2110 kg
• Boom working angle: ±80°
• Crane rotation: 340°
• Machine weight: 1520 – 1550 kg
• Pick & carry: up to 250 kg

Optional Equipment
• Wireless remote control
• Variable-position outriggers
• Safety sensor system
• High-traction crawler tracks
• High-precision lifting system

Optional Equipment
• Retractable tracks
• Non-marking white tracks
• 230 Vac electric pump
• Single rope winch (800 kg)
• Work lights
• Jib system
• Mechanical extension 2 m (1+1)


Applications
• Glass installation
• Construction projects
• Industrial maintenance
• Confined space operations
• Heavy load lifting and positioning
• Renovation and technical works
