ELMA MCX90 | Tracked Mini Crane for professional lifting with working height up to 13m and lifting capacity up to 3200kg

MCX90

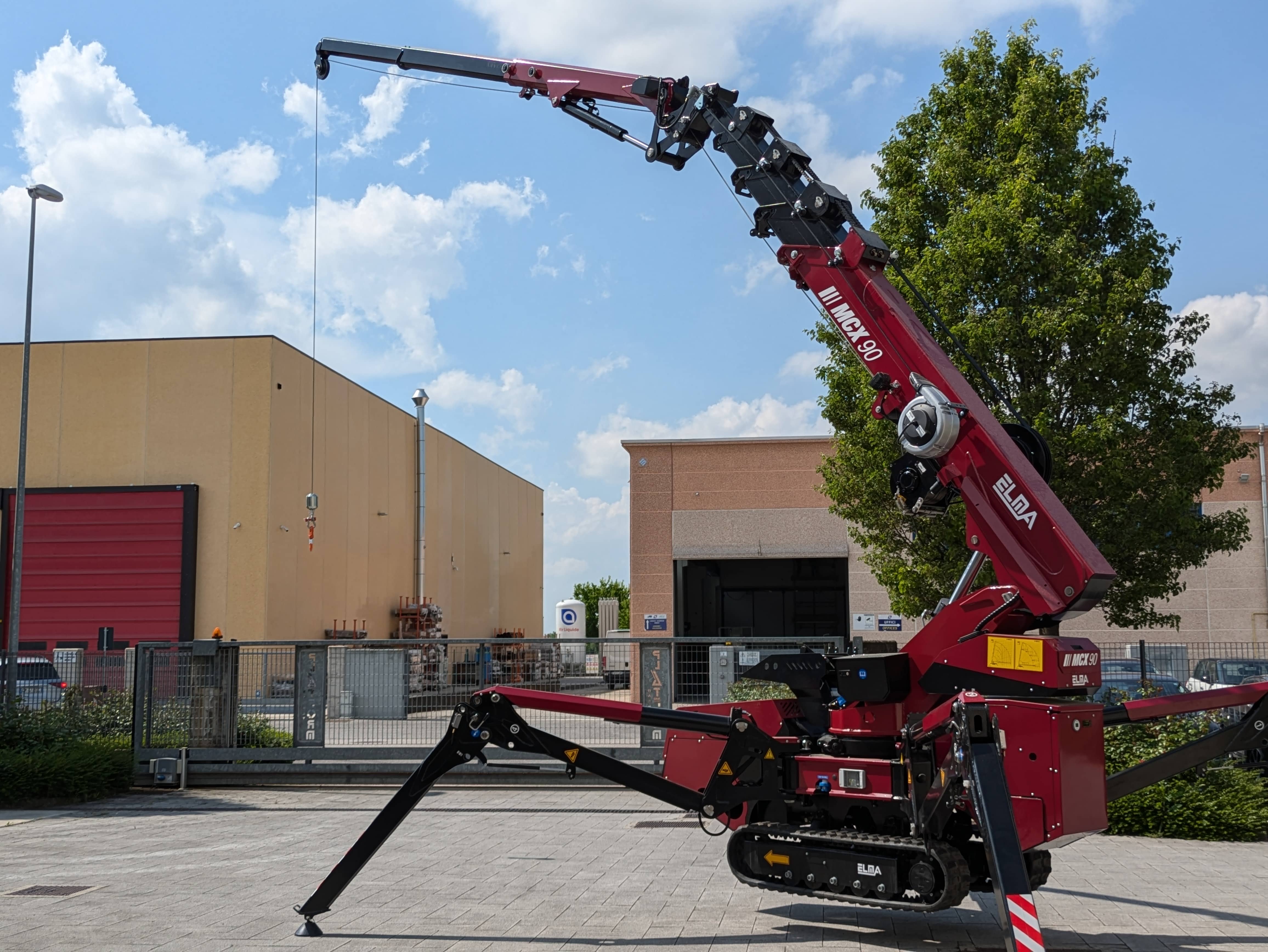

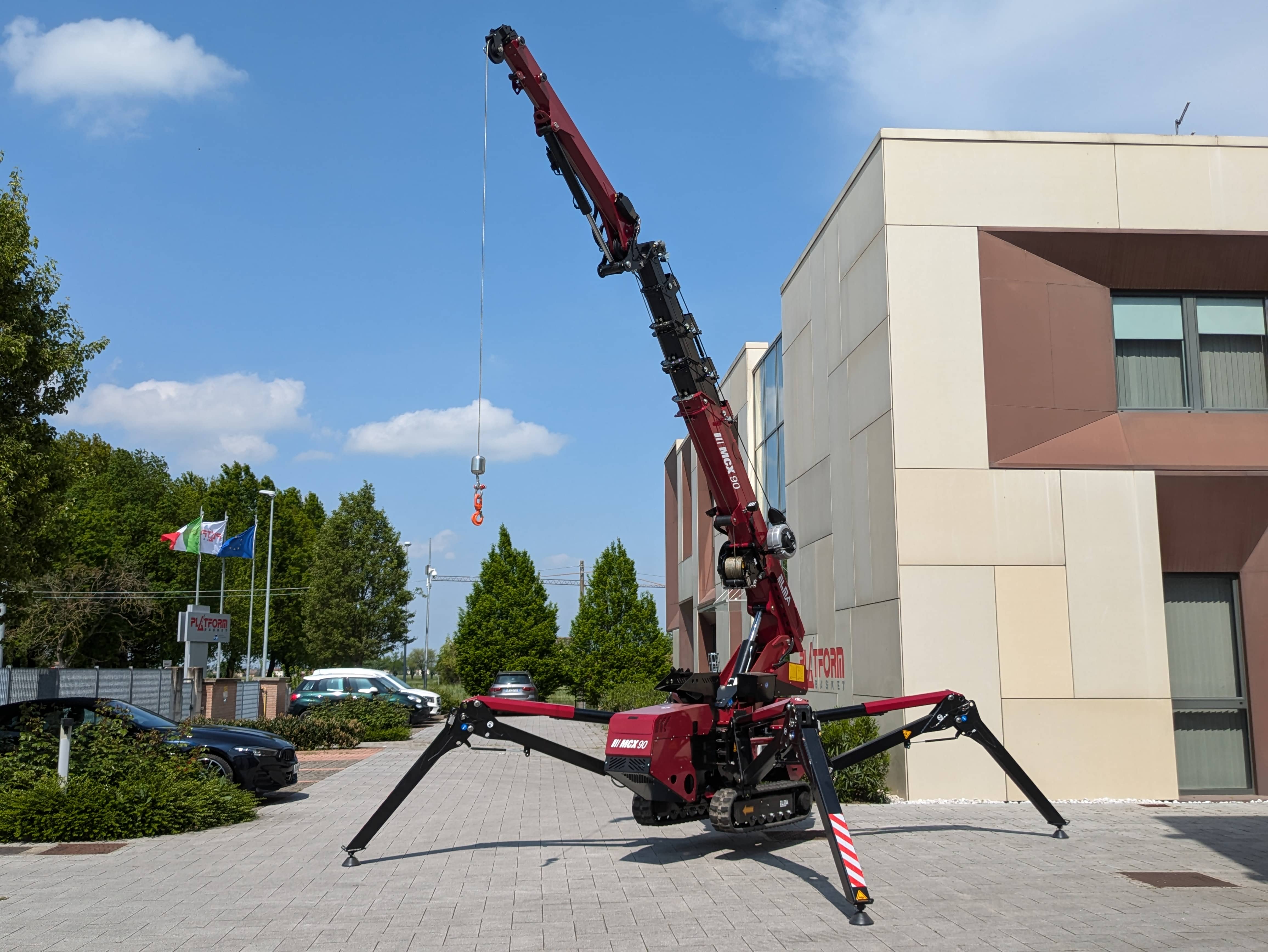

- The MCX90 mini crawler crane is a high-performance solution designed to handle demanding applications while maintaining a compact and versatile structure. It can be easily transported on a 3.5-ton trailer, making it ideal for jobs requiring frequent relocation.
- The crane delivers a lifting performance of 9 Tm and a maximum working height of up to 19 m, with the ability to operate with or without a jib.
- Integrated sensor technology allows operators to continuously monitor load position, ensuring maximum precision and safety. The pick-and-carry capability of up to 250 kg further enhances operational efficiency.

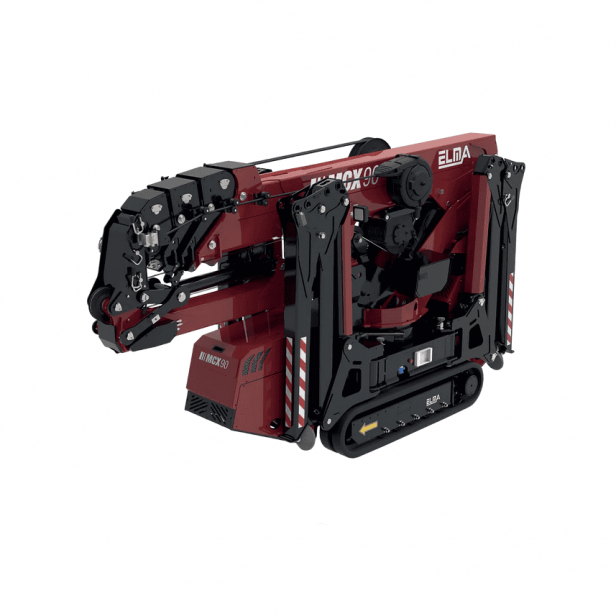

- The double articulation with a foldable jib allows the MCX90 to overcome obstacles and position loads with extreme precision. When folded, the machine can pass through standard doors.
- The crane is equipped with a remote control and an integrated color diagnostic display, providing intuitive and complete control over all operations.
- The model is available with a diesel Kubota engine and a 230 Vac electric pump, as well as with a 48Vdc battery system up to 180Ah.

Advantages
• High lifting performance (9 Tm)
• Maximum working height up to 19 m
• Operation with or without jib
• Double articulation for obstacle overcoming
• Advanced sensor technology for enhanced safety
• Pick-and-carry capability
• Compact design with door access capability
• Easy transport on 3.5-ton trailer
• Remote control with color diagnostic display
• Available high-capacity battery version

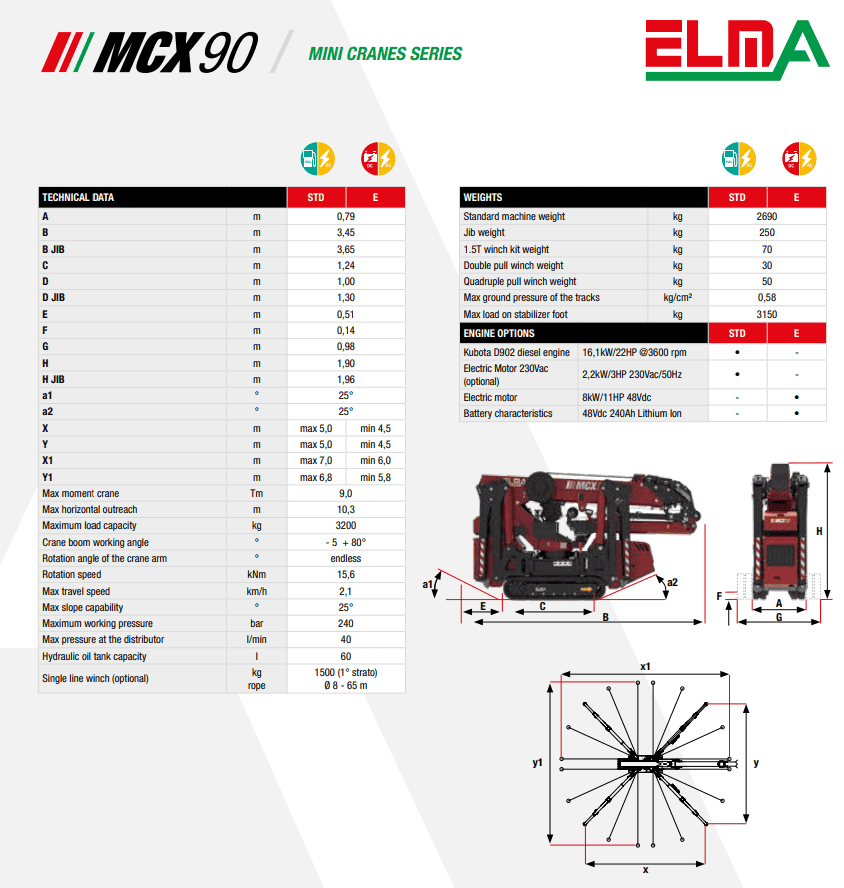

Technical Specifications
• Rated moment: 9 Tm
• Max working height: up to 19 m
• Pick & carry: up to 250 kg
• Machine weight: ~2690 kg
• Type: crawler crane with variable-position outriggers

Standard Equipment
• Wireless remote control
• Color diagnostic display
• Variable-position outriggers
• Safety sensor system
• High-precision lifting system

Optional Equipment
• Retractable tracks
• Non-marking white tracks
• 230 Vac electric pump
• 2-stage hydraulic jib
• Direct pull winch 1.5 t
• Double pull winch kit
• Quadruple pull winch kit
• Glass handling system
• Modular battery pack 120–240 Ah (48Vdc)

Applications
• Glass installation
• Heavy-duty construction projects
• Industrial maintenance
• Confined space operations
• Heavy load lifting and positioning
• Projects requiring frequent relocation
