Articulating Self-Propelled Boom Lift Diesel Genie ZX-135/70 (MOD 2015) with working height up to 43.15m, horizontal outreach 21.26m and platform capacity 272kg | Available for rental

ZX‑135/70

The Genie ZX‑135/70 is a high-performance articulated boom lift designed for professional use in construction sites, industrial facilities, and outdoor high-elevation work. It provides reliability, safety, and exceptional flexibility to access difficult or confined areas, allowing operators to reach up, out, and over obstacles that other equipment cannot. The ZX‑135/70 combines strong mobility, extended reach, and stability, making it one of the top lifts in its class.

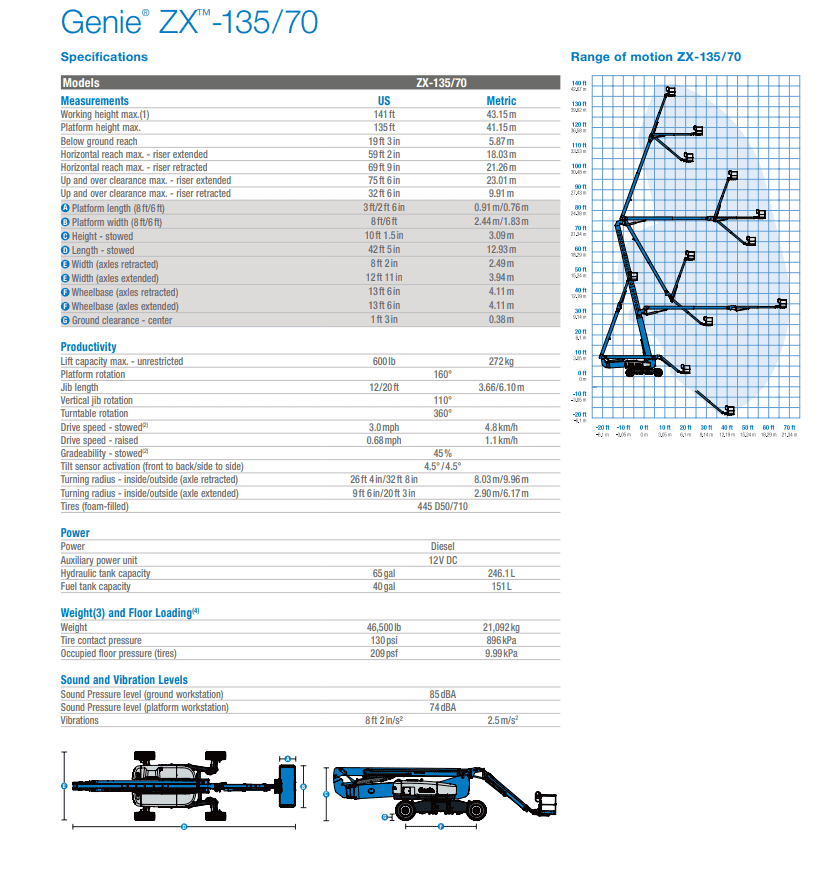

Technical Specifications

• Maximum Working Height: 43.15 m (141 ft)
• Maximum Platform Height: 41.15 m (135 ft)
• Horizontal Outreach: 21.26 m (69 ft 9 in)
• Up & Over Clearance: 23.01 m (75 ft 6 in)
• Below Ground Reach: 5.87 m (19 ft 3 in)
• Platform Width: 2.44 m (8 ft)
• Platform Length: 0.91 m (3 ft)
• Platform Capacity: 272 kg (600 lb)
• Turntable Rotation: 360° continuous
• Platform Rotation: 160°
• Power Type: Diesel engine
• Drive: 4×4 full traction
• Mini Genie X‑Chassis® System: Extendable / retractable
• Telescoping Jib‑Extend®: 3.66 – 6.10 m (12 – 20 ft)
• Jib Angle: 110°
• Wheel Type: High-traction for rough terrain
• Suspension: Four-wheel suspension for stability
• Gradeability: up to 45%
• Travel Speed: 4.8 km/h (horizontal)
• Fuel Tank Capacity: 151 L (40 US gal)
• Machine Weight: ~22,700 kg (50,071 lb)

Hour meter reading: 4,313 h
