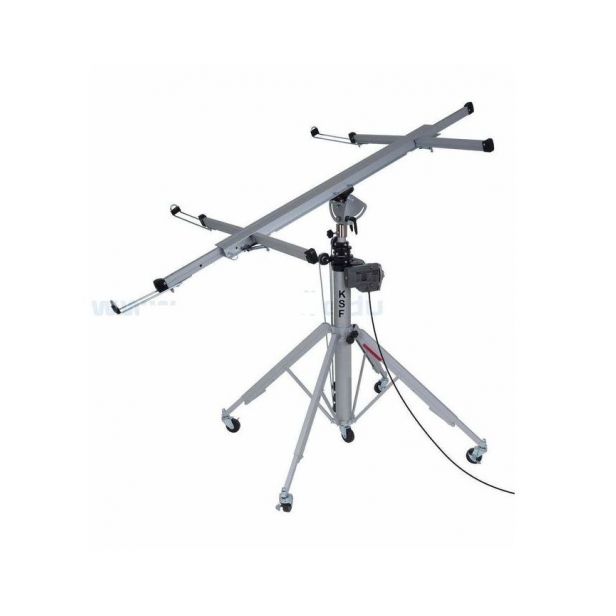

The Electric Drywall Lifter DW-340 is designed to reduce labor cost, One person can easily operate it.
It’s suitable for position of drywall board, panel, insulation boards and similar.The distance of two arms up to 3,58 m to take sheets up to 4′ x 16′.It’s can be operate in horizontal, vertical and ceiling positioning.Vertical loading height without ground clearance. Electric remote control with variable speed switch The variable speed control can be soft start or adjust the micro operating height.Emergency Stop Button, for stop raising / lowering immediately in case of emergency and manual operating in case of power failure.
- The distance of two arms up to 3,58 m to take sheets up to 4′ x 16′.
- It’s can be operate in horizontal, vertical and ceiling positioning.
- Vertical loading height without ground clearance.
- Mounted on wheels of caster with break for easily movement.
- Set-Up without tools : The legs can be release or fold in seconds without tools.
- Telescoping legs versatile and infinitely adjustment, available use in uneven ground, like stairway
- Electric remote control with variable speed switch
- The variable speed control can be soft start or adjust the micro operating height.
- Emergency Stop Button, for stop raising / lowering immediately in case of emergency.
- Manual operating in case of power failure.
- Completely portable, light weight design to easy carry and transport it.
- Telescoping Mast : constructed by heat treated, robust aluminum, compact and reliability.
- Automatic Overload breaker: it equipped to prevent to over weight loading.
- Voltage 230 V or 110 V – 50 / 60 Hz.
- Cradle load capacity : 70 kg – Cradle weight 12 kg
- Distance of two arms with outriggers 3,58 m
*The transportation wheels are not included.You can purchase them as an extra.
- Electric Motor 220V
- DW-340 H1: Lifting height 3.3m
- net weight 21kg
- Lifting capacity 70kg
- closed height with adapter 115cm
|Weigh t|| Basic|
| Dimension |
|DW 340||70 kg||21 kg||970 mm||300 x 300 mm||1,1 x 1 m|
