ALITRAK ELECTRICALLY DRIVEN TUG OT1200L - 4000KG

Electric tow tug for up to 4000kg!

The OT-900L / OT-1200L is a towing equipment with three wheels and tiller steering. Thanks to the presence of an electric lifter that controls the movement of a tow ball, it is perfect for handling trailer trolleys, boat trailers and caravans in campgrounds and marinas, in safety and comfort, reducing physical stress and improving productivity.

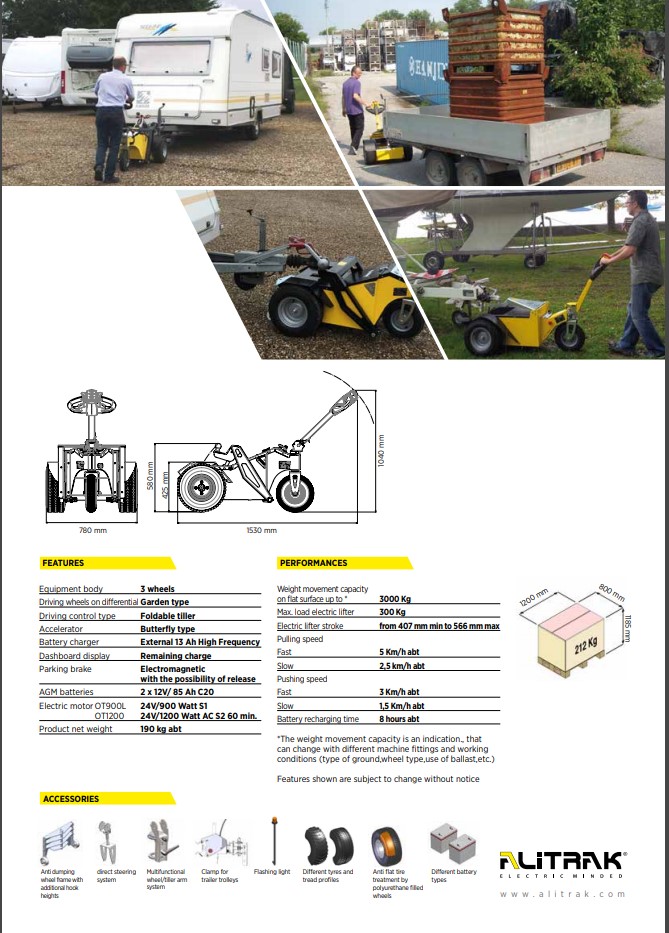

Specifications

• Pulling capacity on flat surface:  OT-1200L 4000 Kg
• Loading capacity on flat surface: 300 kg
• Pulling speed: fast 5 Km/h – slow 2,5 Km/h
• Pushing speed: fast 3 Km/h – slow 1,5 Km/h
• Battery recharging time: approx. 8 hrs.
• Battery: AGM 2 x 12V/85 Ah C20
• Electric motor: OT-900 24V/900 watt DC S1 – OT-1200 24V/1200 watt AC S2 60 min.
• Length: 1530 mm
• Width: 780 mm
• Height: 1040 mm
• Weight: 190 kg
• Dashboard display: OT-900 Remaining battery charge – OT-1200 Remaining battery charge, equipment failures, hour meter
• Battery charger: On board – 13A high frequency
• Speed control: Butterfly type
• Parking brake: Electromagnetic with the possibility of release
• Oil bath differential
