ELMA CR15 Electric Tracked Carrier up to 1500kg for construction sites with zero emission operation

ELMA CR15

- ELMA CR tracked carriers are advanced material handling machines designed for high performance in demanding construction and urban environments. They combine high load capacity, compact dimensions, and a fully electric drive system, delivering reliable and sustainable operation.
- The CR series features modular battery technology derived from ELMA’s MCX line, consisting of independent power modules that ensure continuous operation even in case of partial failure, significantly improving reliability, safety, and uptime.
- The CR15 model represents the compact and versatile solution of the range, with a load capacity of 1,500 kg and a weight of just 380 kg. It is ideal for indoor and confined environments, offering excellent maneuverability, the ability to operate on slopes up to 40°, and easy access through narrow openings without compromising stability.

Advantages
• Fully electric operation – zero emissions
• Modular battery system for uninterrupted performance
• High reliability and maximum uptime
• Compact design for confined spaces
• Excellent traction and stability
• Low operating and maintenance costs
• Flexible configuration options

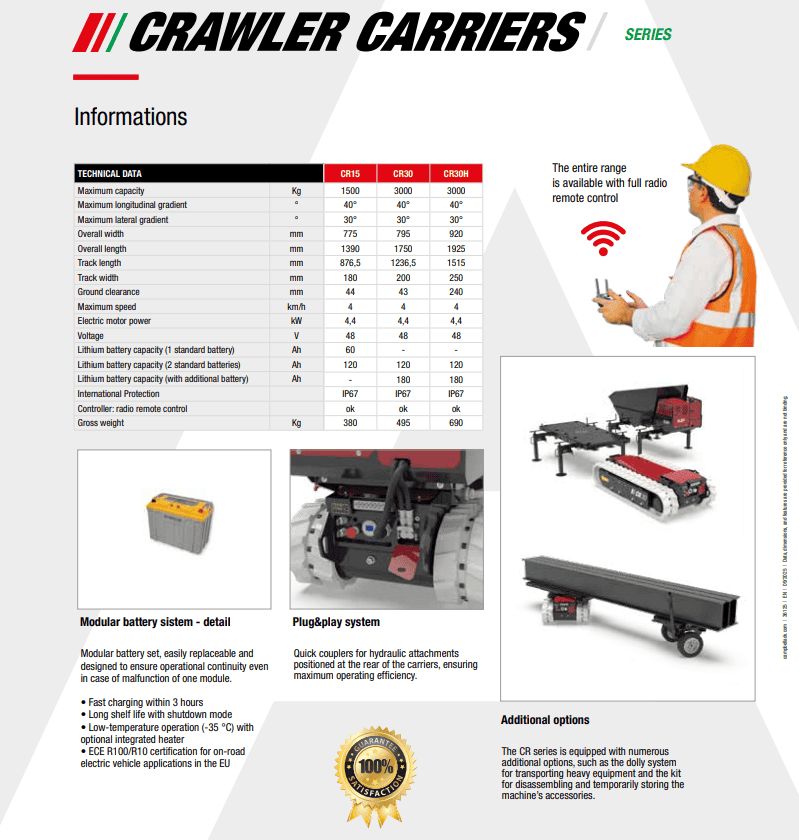

Technical Specifications
• Load capacity: 1,500 kg
• Weight: 380 kg
• Max slope: up to 40°
• Fully electric drive system
• Independent modular battery units

Applications
• Construction sites
• Indoor works and renovations
• Landscaping
• Forestry operations
• Urban environments with limited access
• Transport of delicate materials

Configurations:

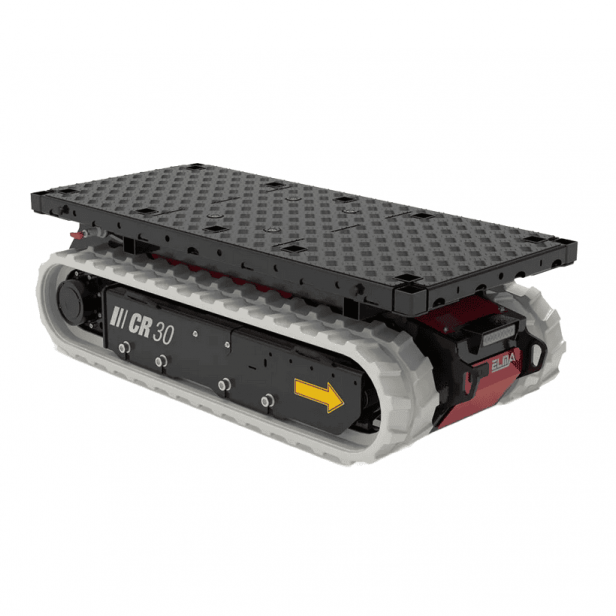

Fixed platform: 165 x 74 cm | up to 3000 kg | 190 kg

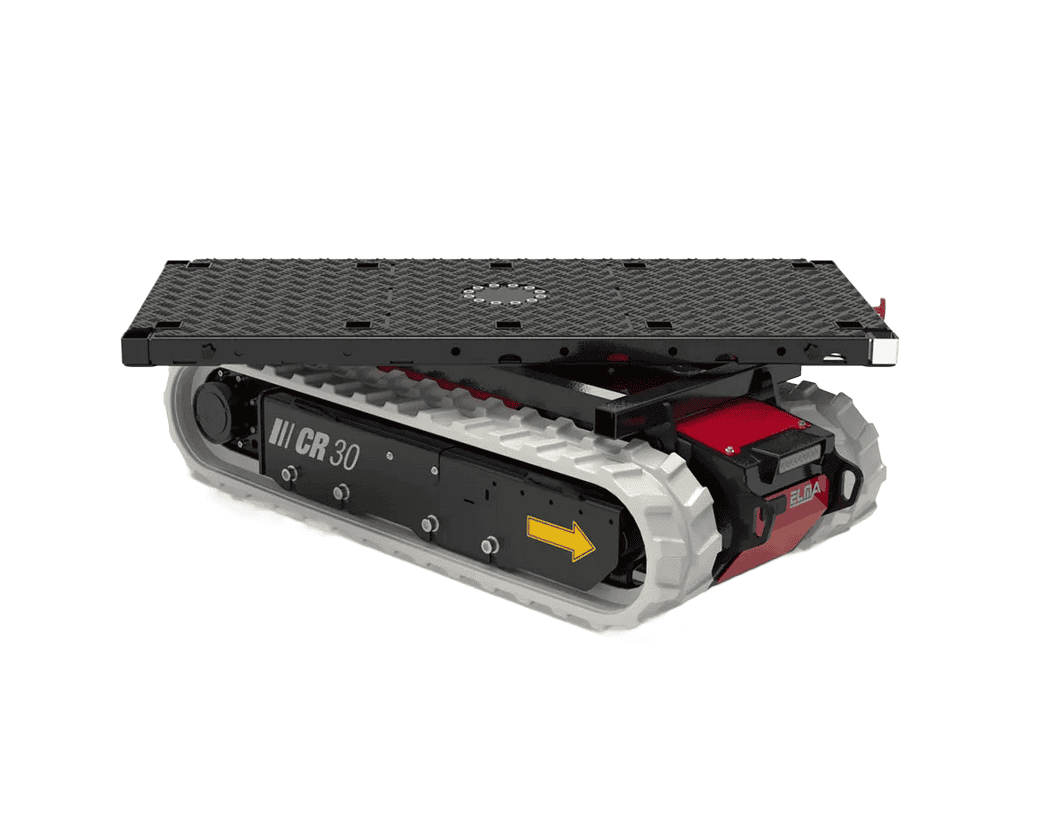

Rotating platform: 165 x 74 cm | up to 3000 kg | 180° rotation | 190 kg

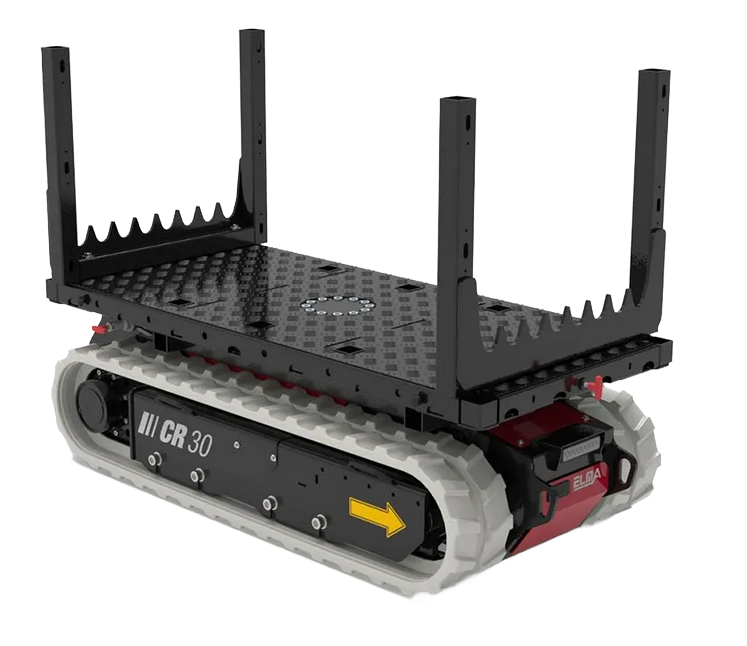

Forestry kit: up to 1450 kg | 50 kg (requires platform)

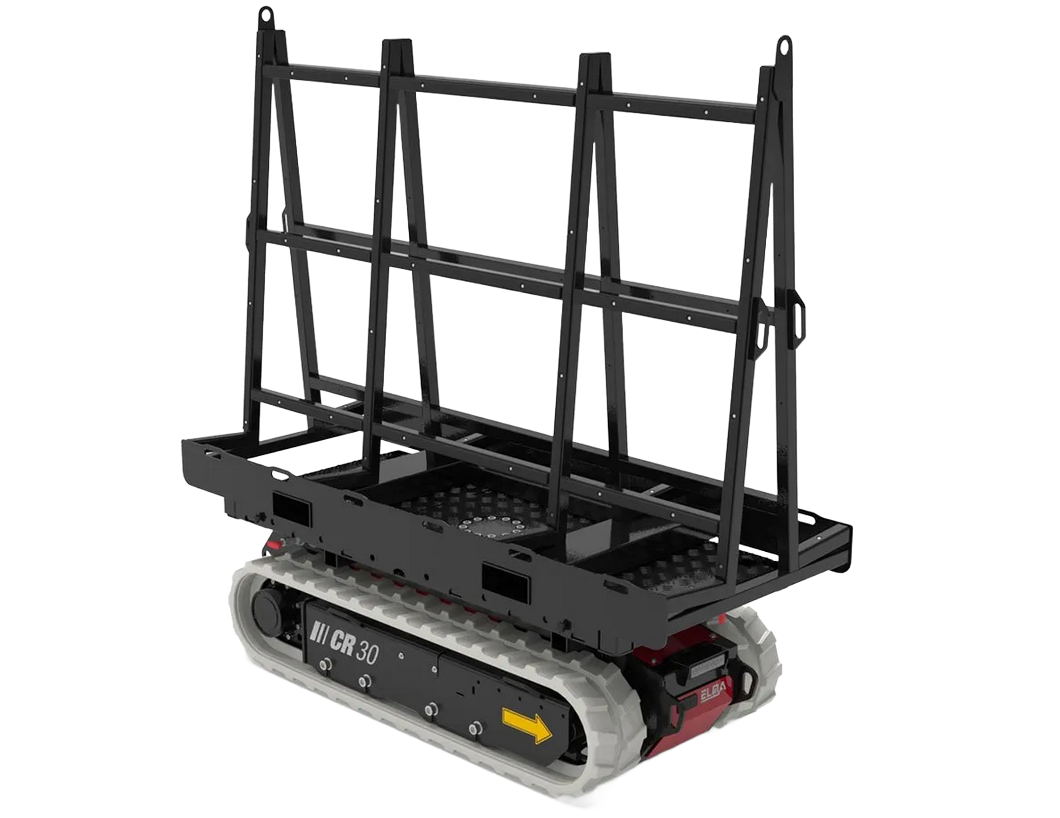

Glass transport kit: up to 1375 kg | 125 kg (requires platform)
